KRP

Programmable Rotary Indexer Enclosures

For Use with Keyence MD-X, MD-U & MD-F Laser Markers

Class 1 Rotary Laser Marking System

The KRP Programmable Rotary Indexer Enclosures combine our proven Class 1 laser marking enclosures with an integrated high-precision programmable rotary axis module for automated 360° marking of parts.
Direct communication with Keyence laser controllers (MD-X, MD-U and MD-F automatically coordinates indexing and marking programs at each position.
Learn more about Keyence Laser Markers Here

System Highlights

  • Class 1 Safety: Interlocked access door & laser safety viewing window
  • Laser Compatibility: Keyence MD-X, MD-U & MD-F series laser markers
  • 360° Automated Marking: Programmable circumferential indexing & marking
  • Flexible Marking: Equal, custom, continuous, manual or non-rotary modes
Download Product Sheet

Enclosure Options

Choose between our compact benchtop enclosure or larger sliding door enclosure to best fit your workspace and part size requirements.
Both enclosures integrate with either rotary indexer for total marking and layout flexibility.
  • Class 1 rated enclosures
  • Compatible with Keyence MD-X, MD-U & MD-F laser markers
  • Touch screen HMI operator controls
  • Safety interlocked access door
  • Laser safety viewing window
  • Interior LED cabinet lighting
  • Fume extractor port

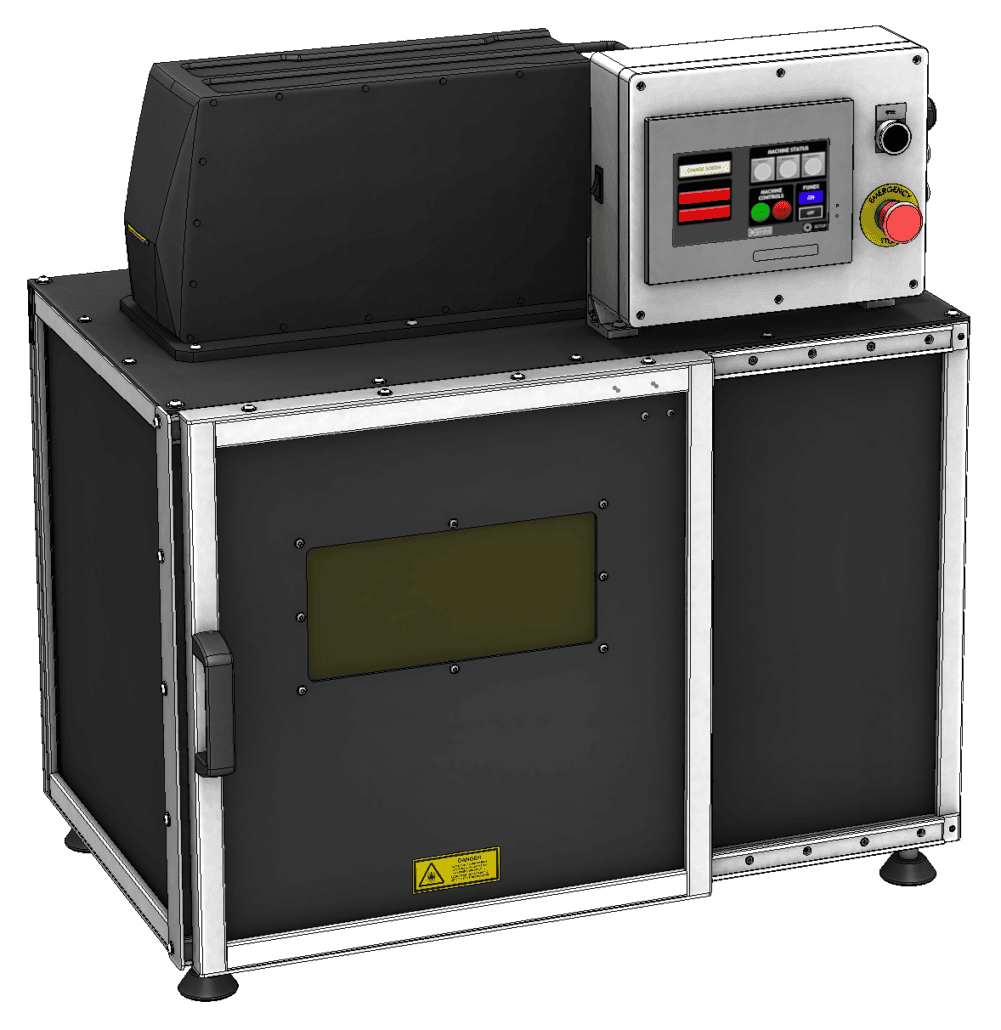

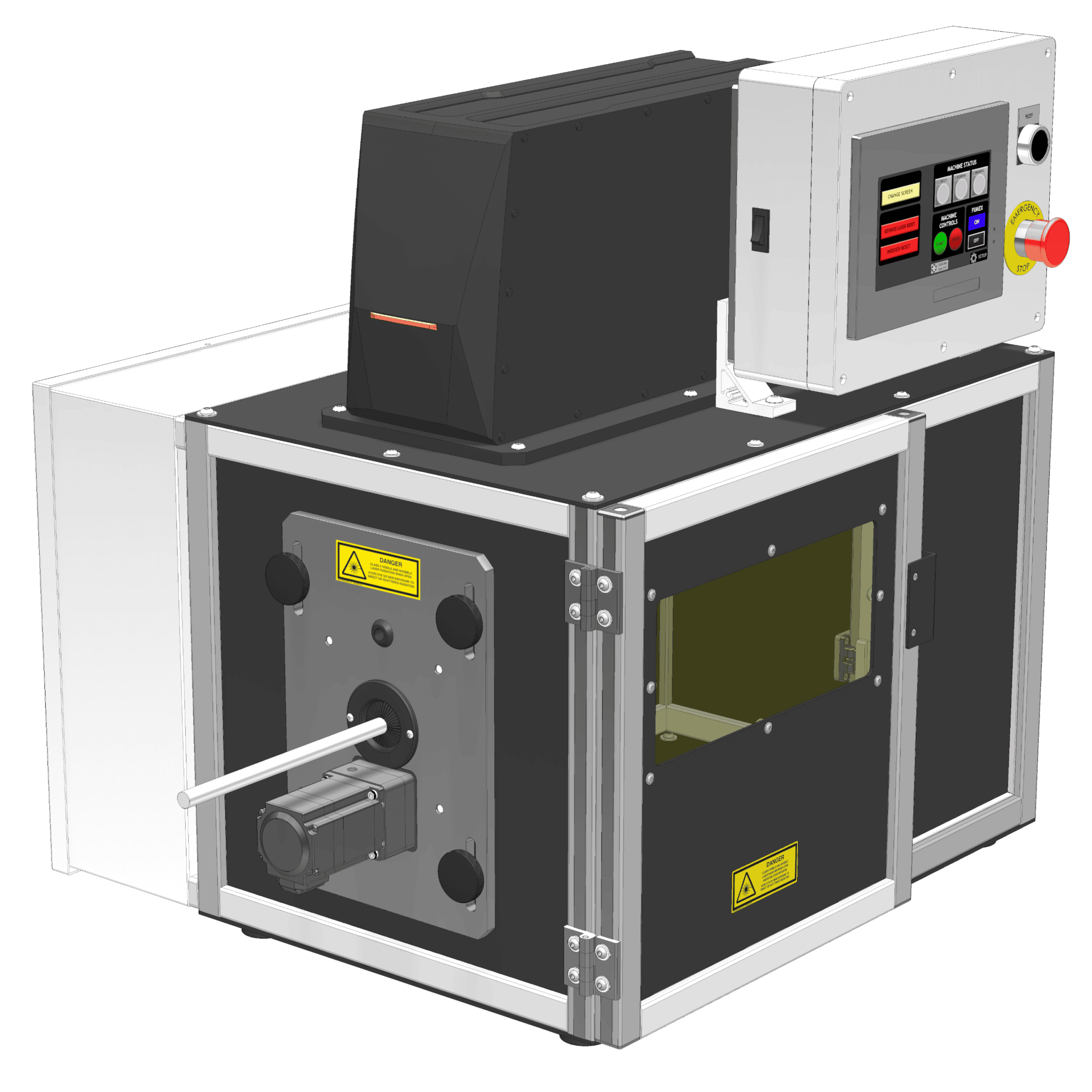

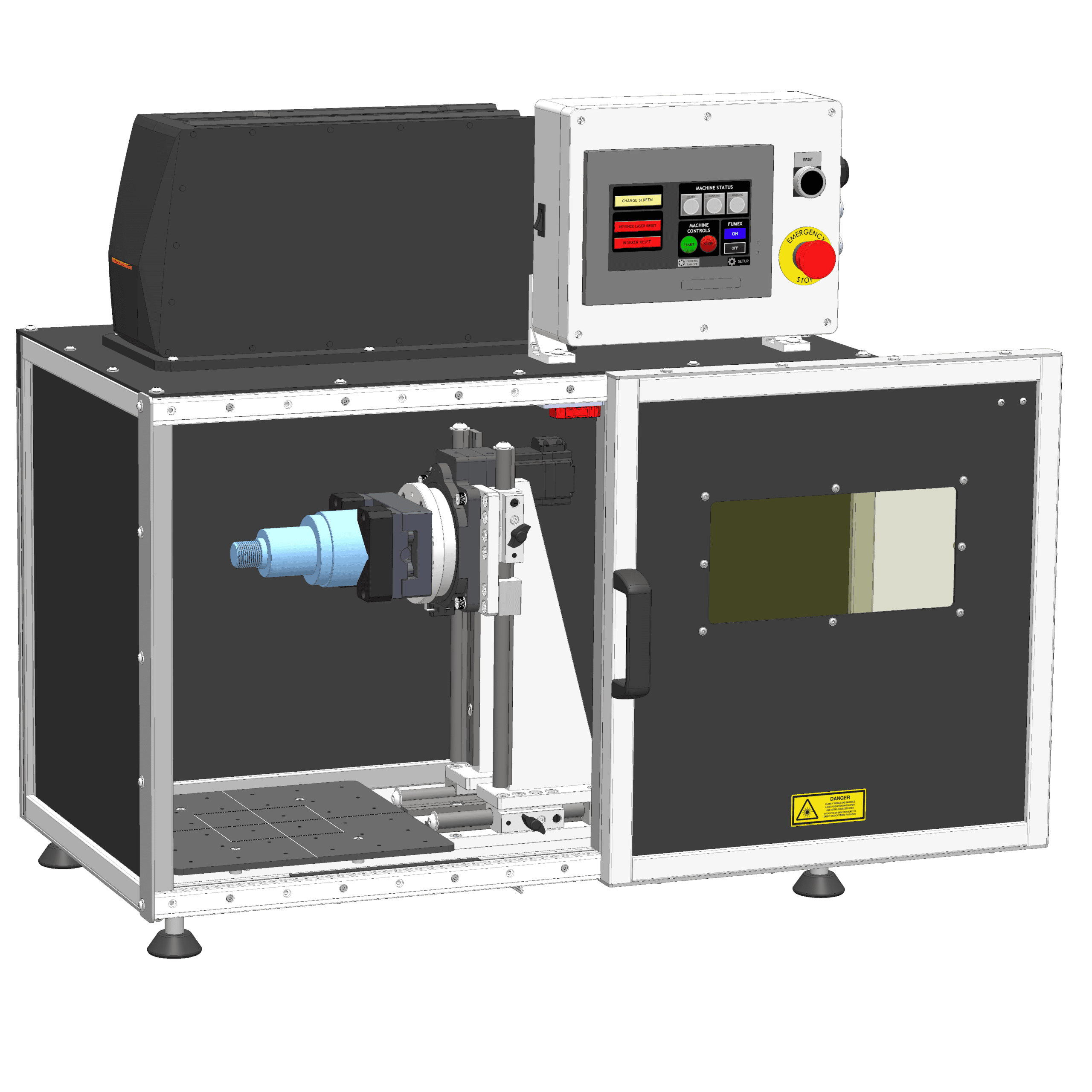

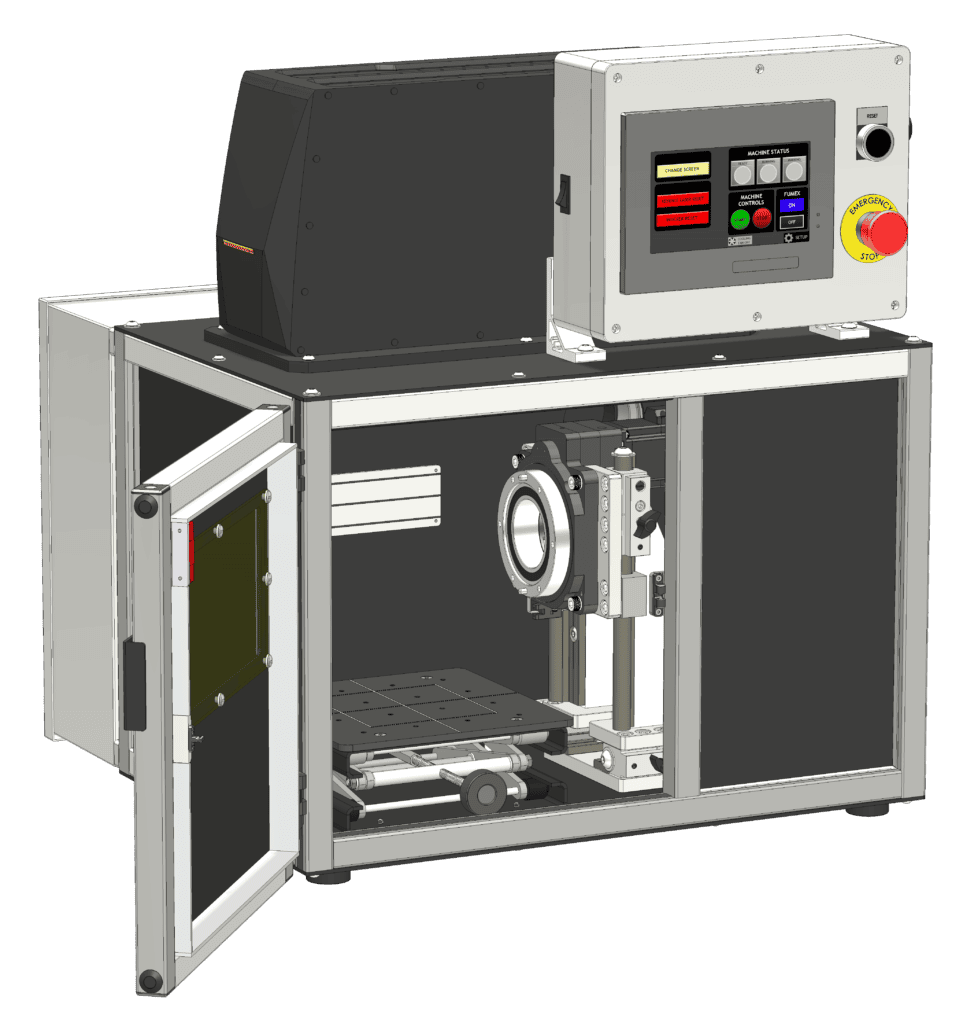

BENCHTOP ENCLOSURE

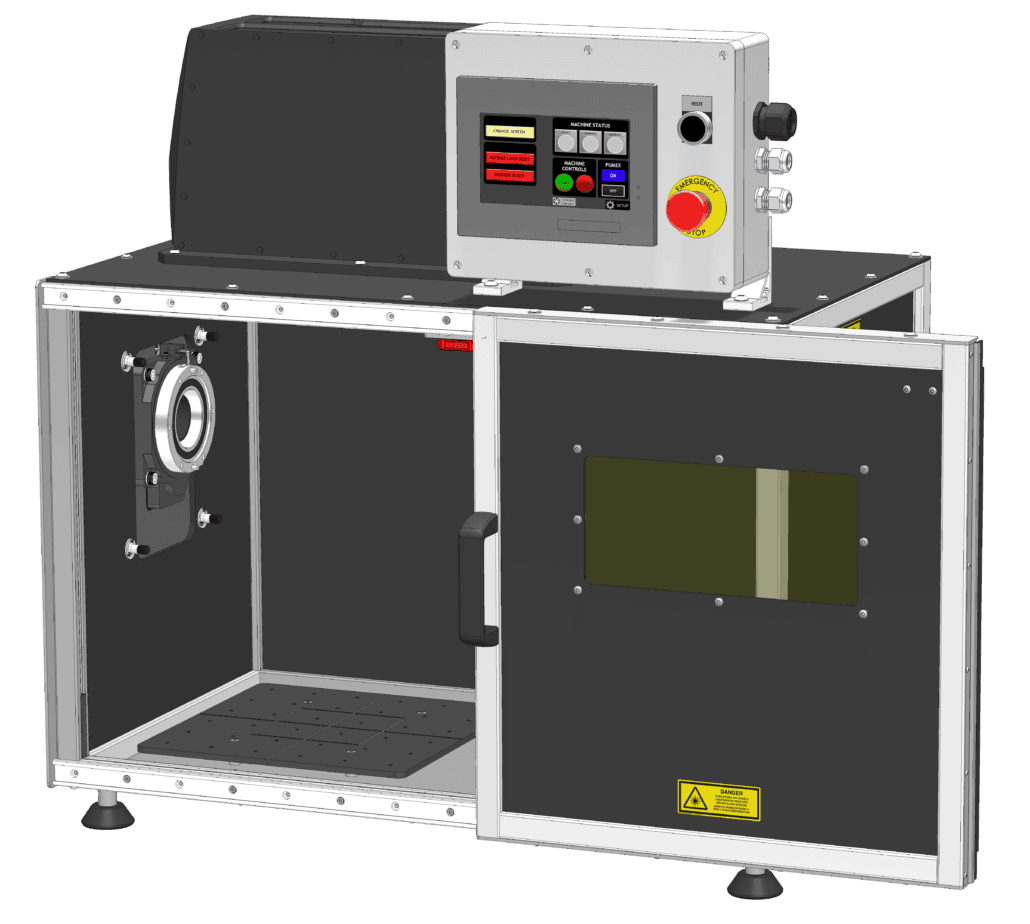

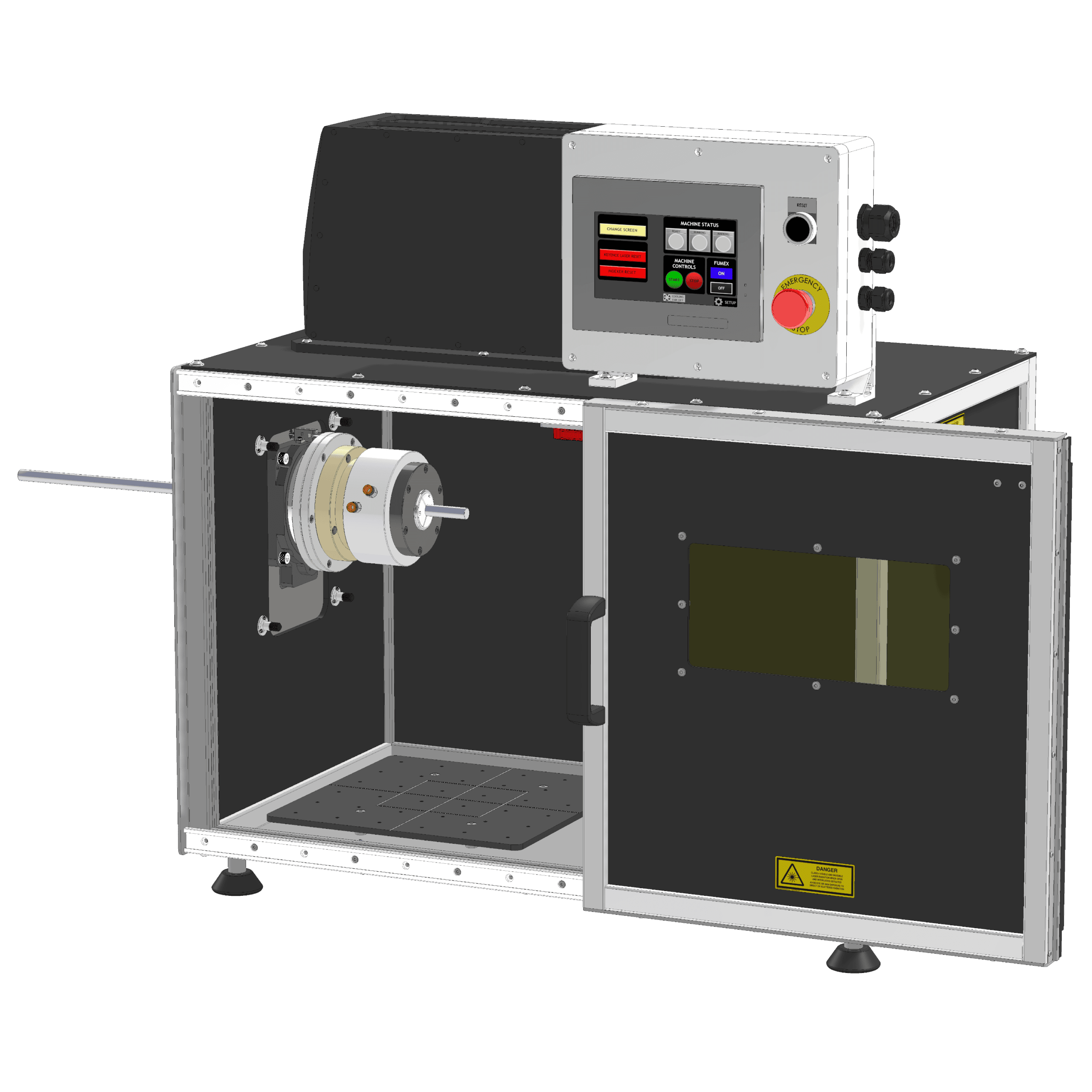

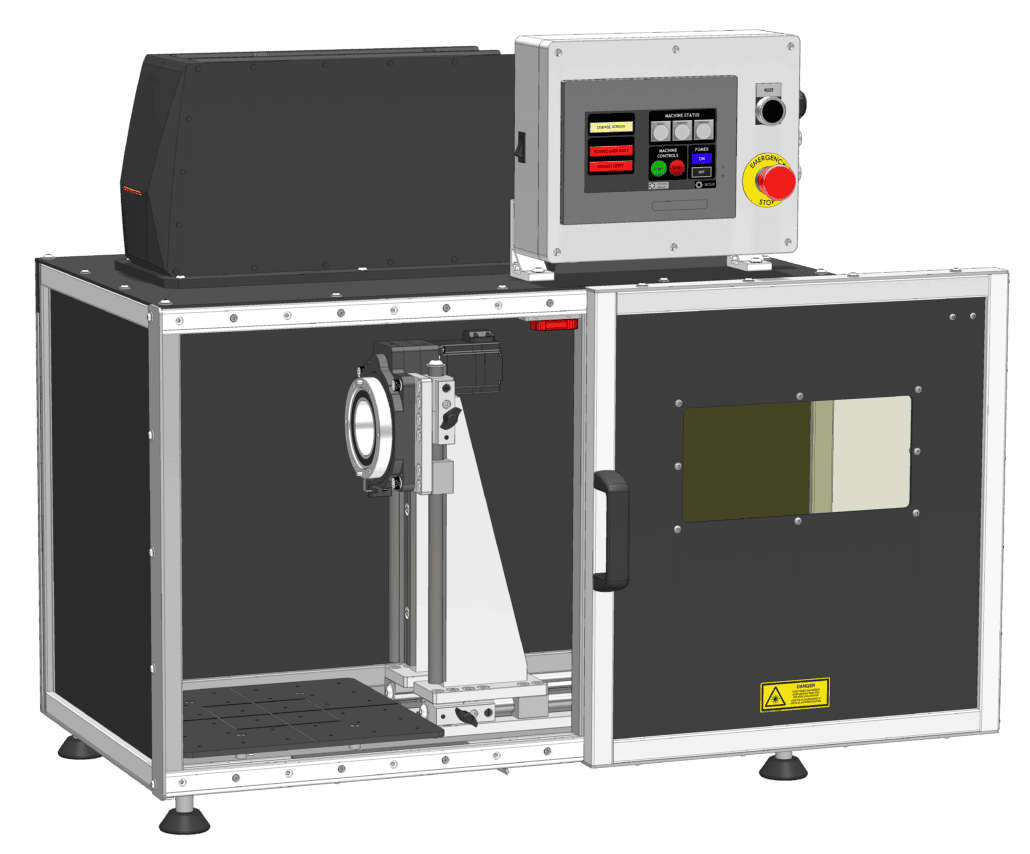

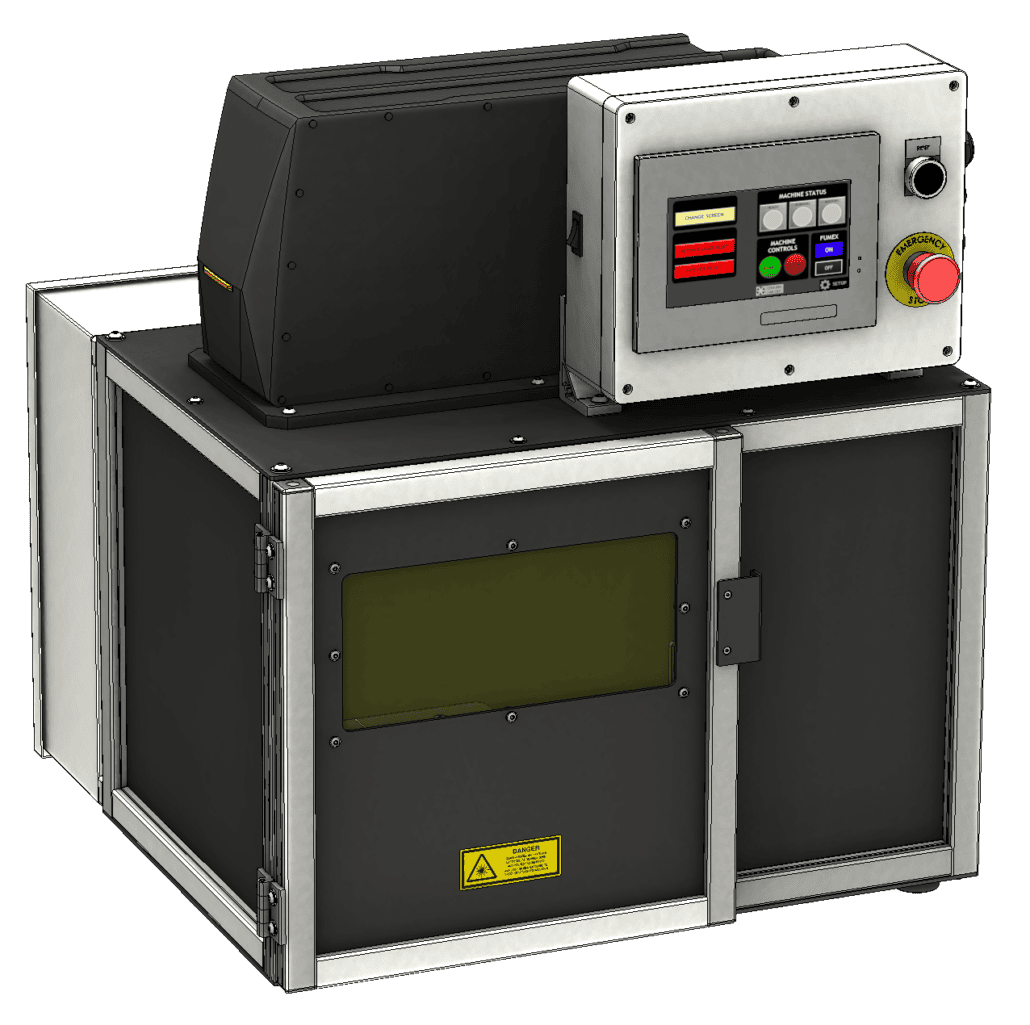

SLIDING DOOR ENCLOSURE

Indexer Options

Select the base mount indexer for complete internal operation inside the enclosure, or choose the panel mount indexer to accommodate extra-long parts passing through from the side of the enclosure.
Both indexer systems integrate directly with Keyence controllers and are compatible with either enclosure model.
  • Precise and consistent rotary indexing
  • Fully programmable with 4 rotary indexing modes
  • Locking vertical and horizontal position adjustment
  • Five workholding options (available for separate purchase)
  • Recipe / program storage and recall
  • EtherNet communication with Keyence laser controller

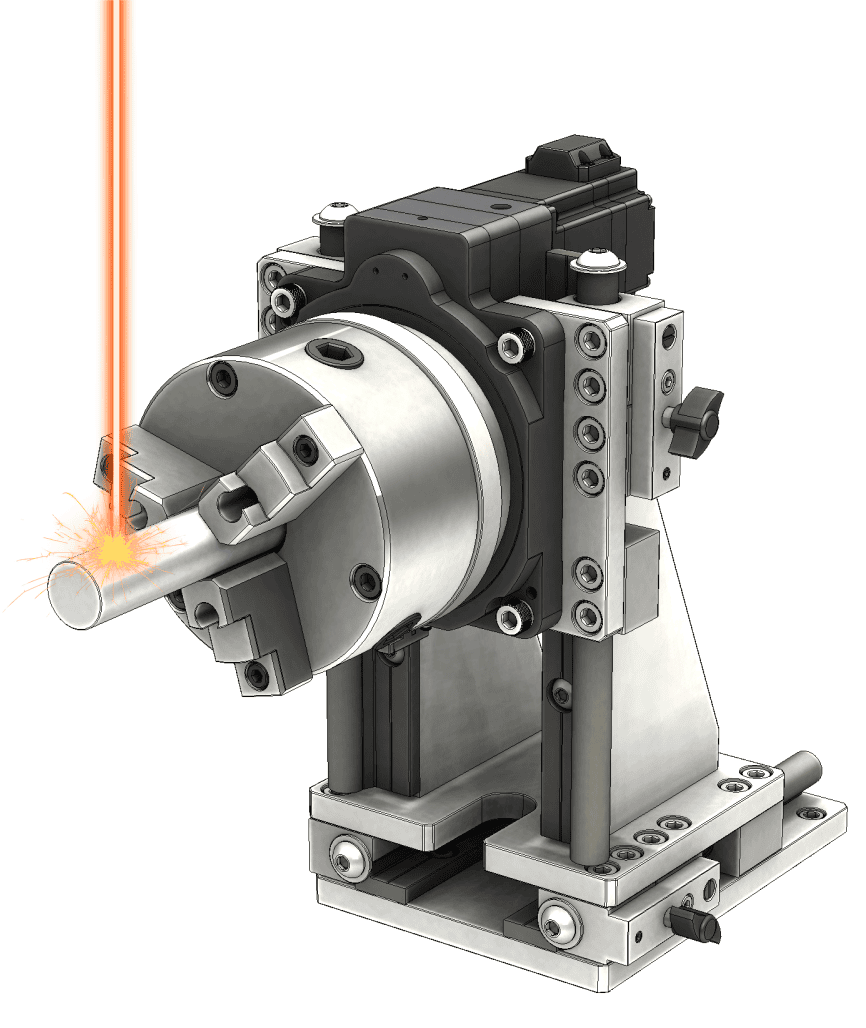

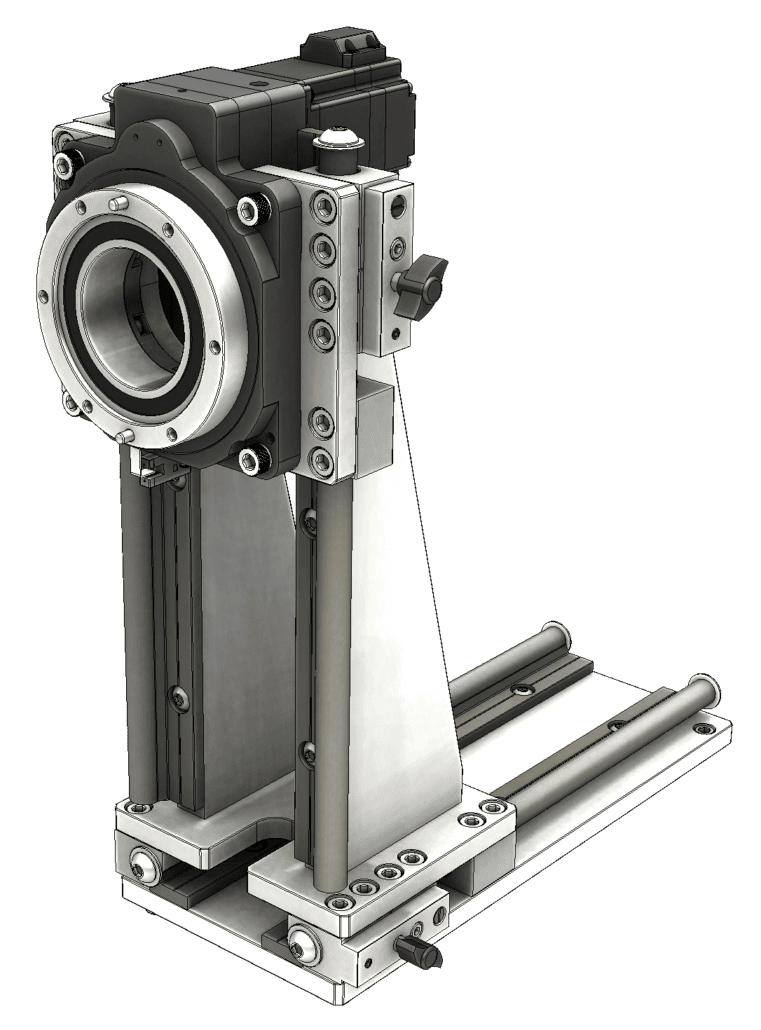

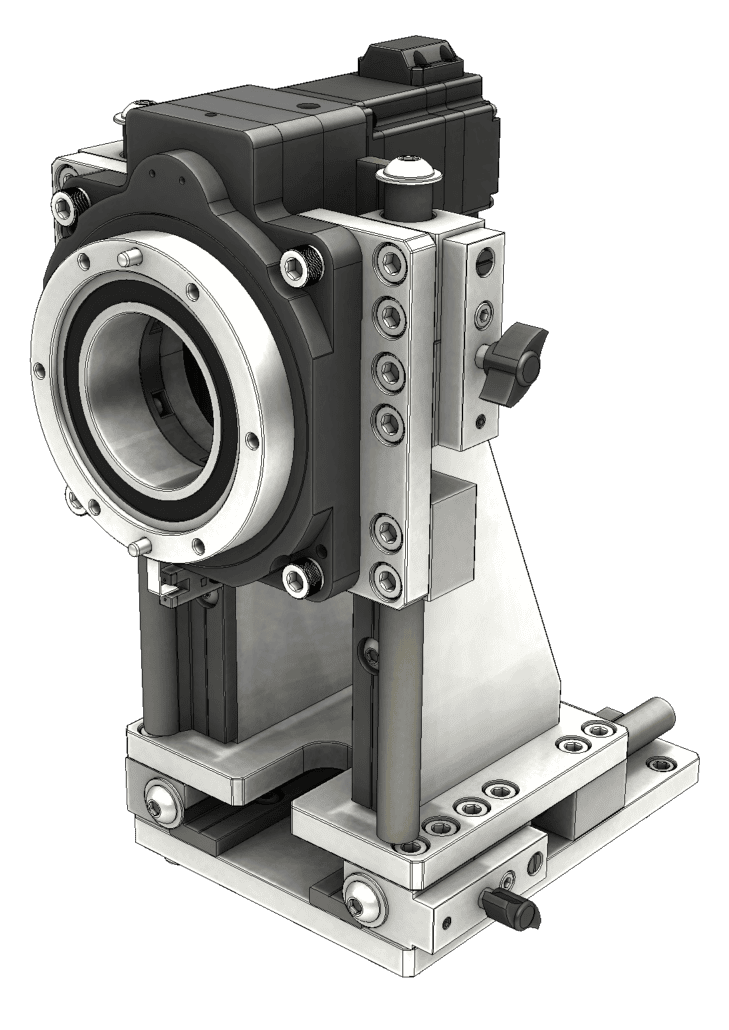

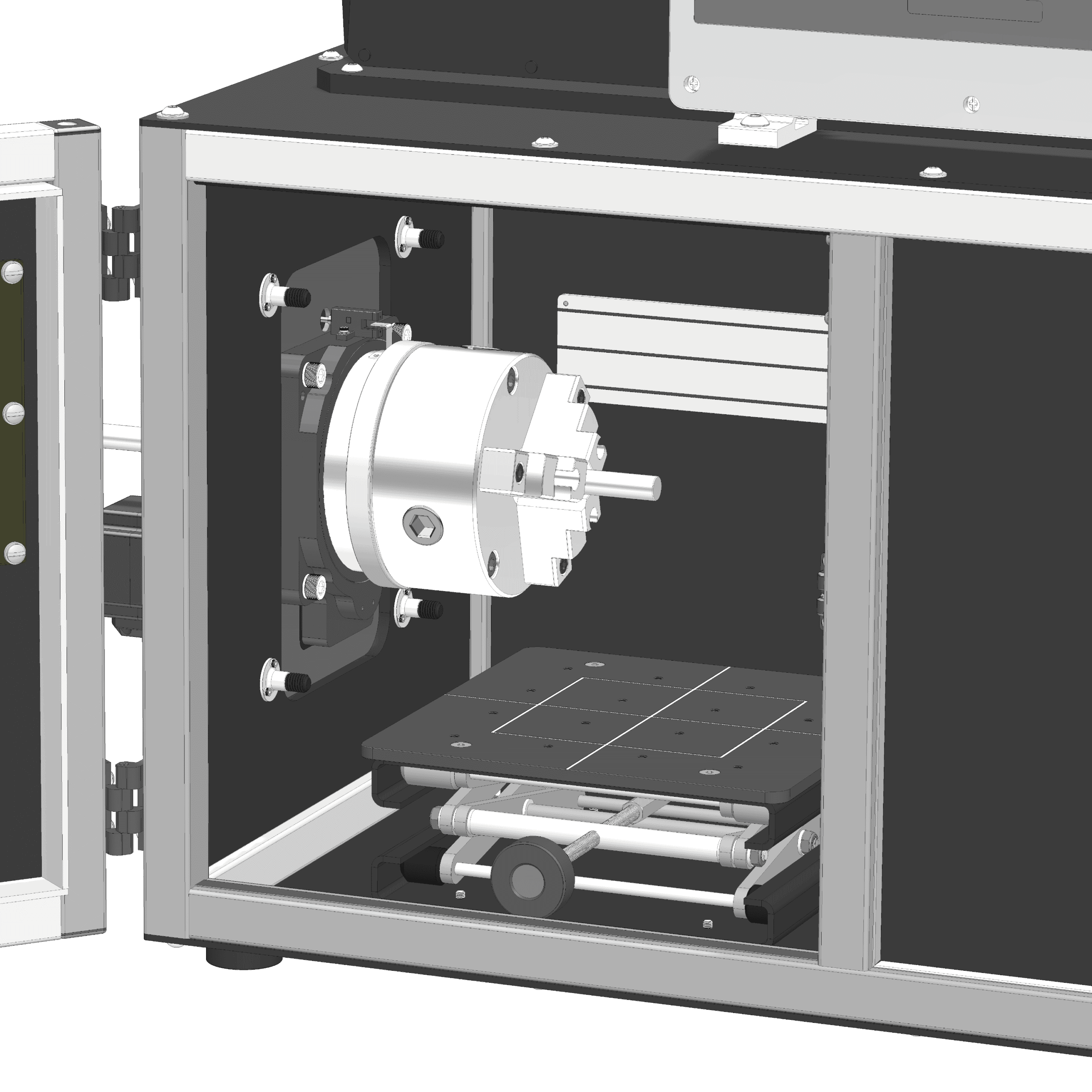

BASE MOUNT INDEXER

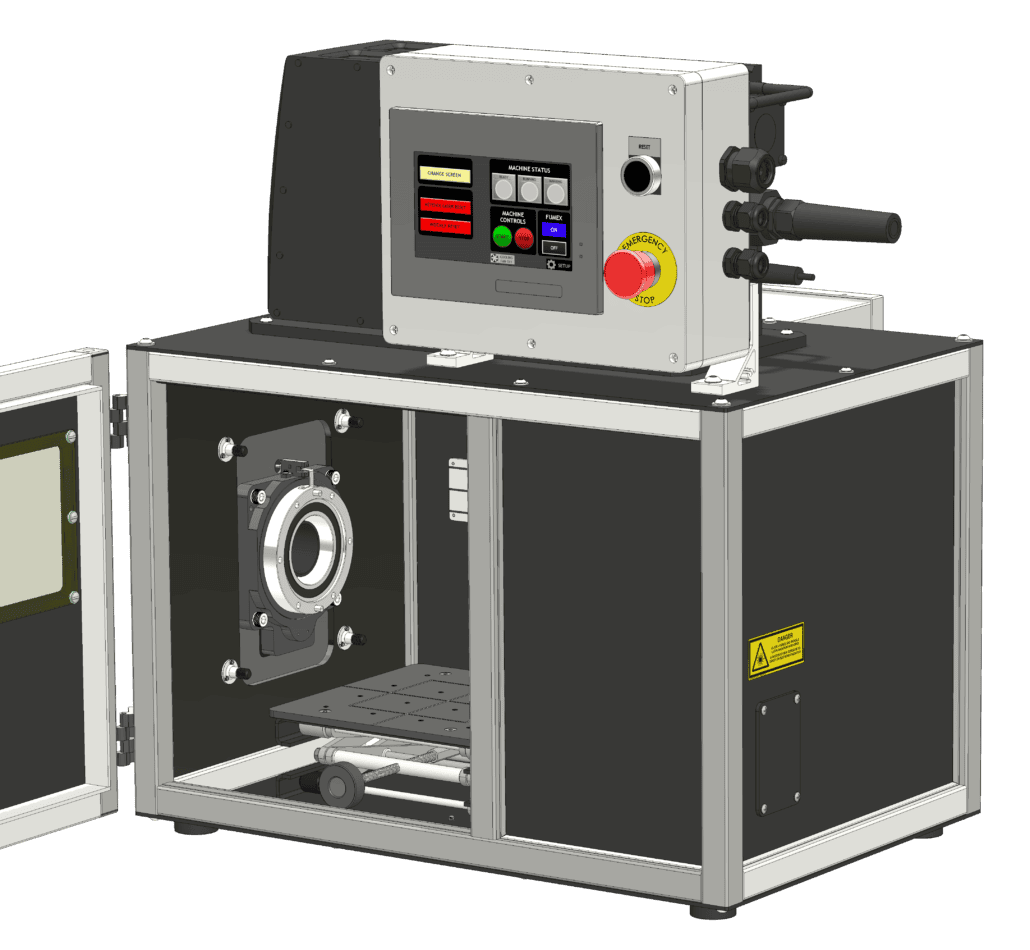

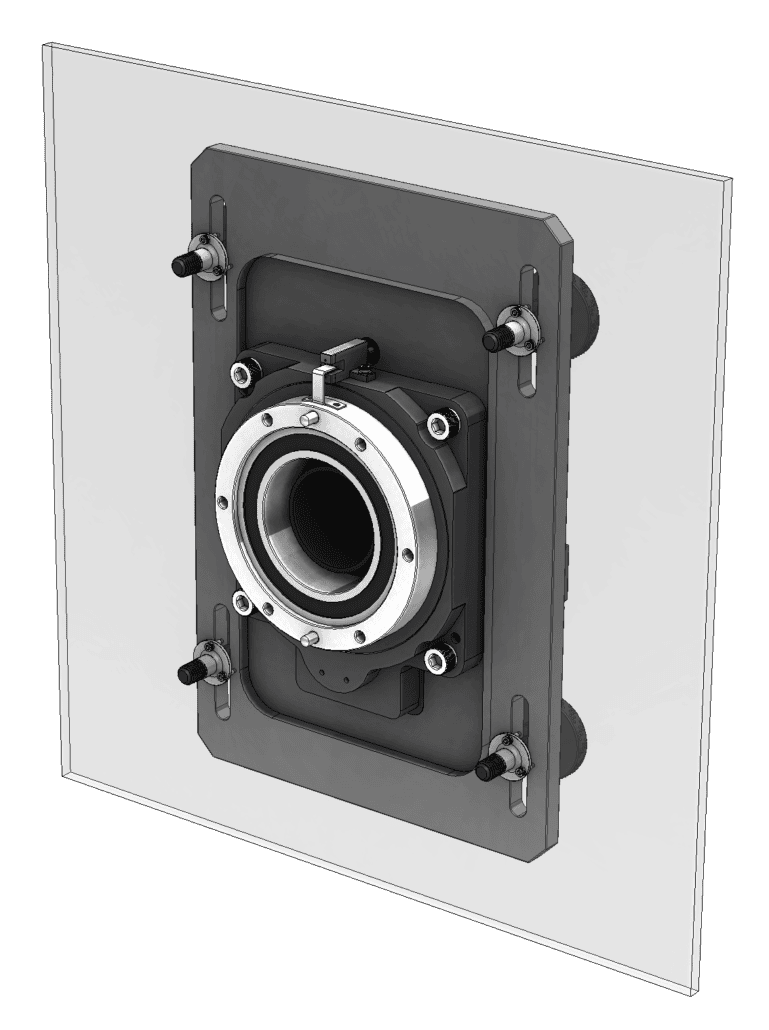

PANEL MOUNT INDEXER

Enclosure / Indexer Models

Configure your KRP enclosure system by selecting an enclosure style and rotary indexer module.

Four standard combinations are available, with interchangeable workholding options available separately.

KRP-B
Benchtop Enclosure  |  Base Mount Indexer
$24,800
KRP-P
Benchtop Enclosure  |  Panel Mount Indexer
$24,800
KRP-SD-B
Sliding Door Enclosure  |  Base Mount Indexer
$28,600
KRP-SD-P
Sliding Door Enclosure  |  Panel Mount Indexer
$28,600
* Sliding door enclosures are available in LH and RH door configurations (door opening on left side or right side of enclosure)
Model Enclosure Type Indexer Module Price
KRP-B
Benchtop Enclosure
Base Mount Indexer
$24,800
KRP-P
Benchtop Enclosure
Panel Mount Indexer
$24,800
KRP-SD-B
Sliding Door Enclosure
Base Mount Indexer
$28,600
KRP-SD-P
Sliding Door Enclosure
Panel Mount Indexer
$28,600
Workholding Options

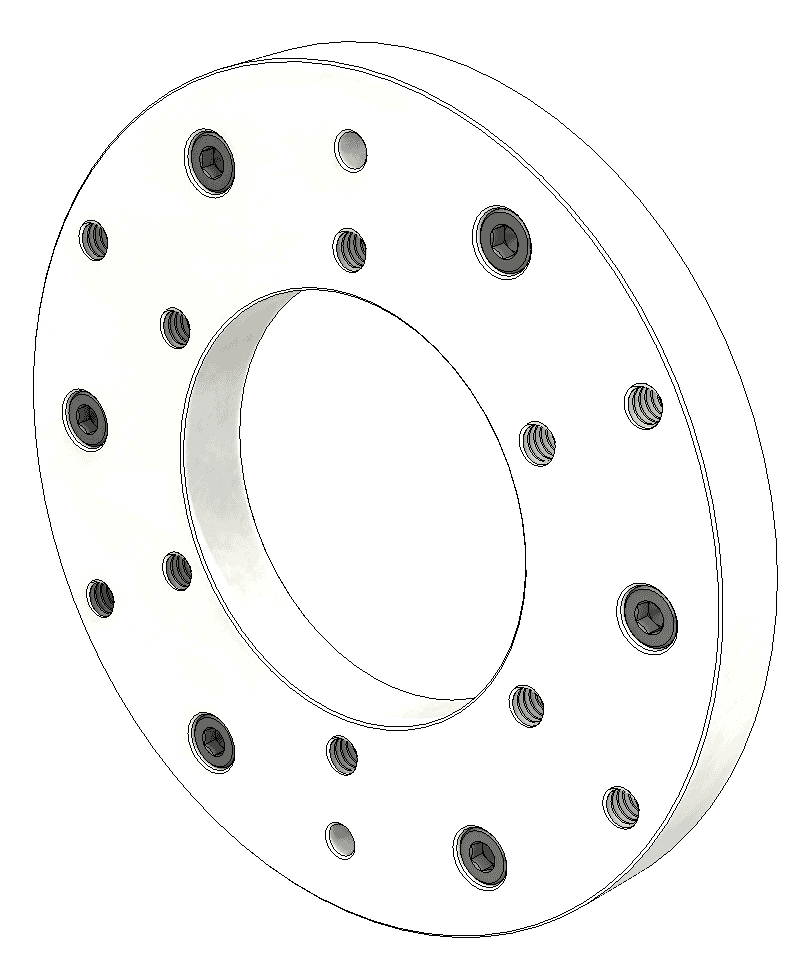

Mount Disc
Model #: KRP-WH1

Price: $990

Tapped mounting holes for custom tooling & fixtures.

  • (10) 1/4-20 tapped mount holes
  • Complete flexibility for custom fixtures
  • 2.5" diameter through hole

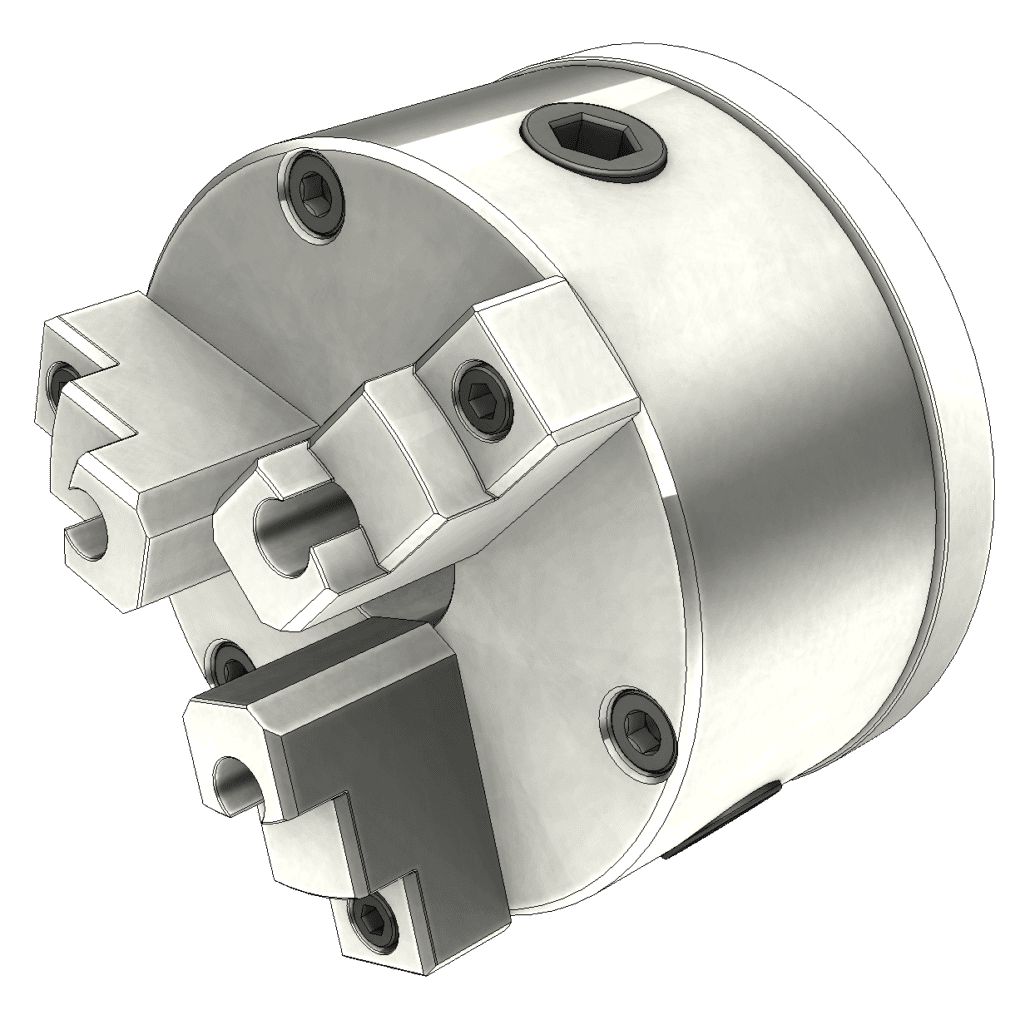

3-Jaw Chuck
Model #: KRP-WH2

Price: 1,880

Secure ID or OD clamping across a wide range of part diameters.

  • Clamping Range: 0.098" - 4.331"
  • Jamming Range: 1.496" - 4.921"
  • 1.18" diameter through hole

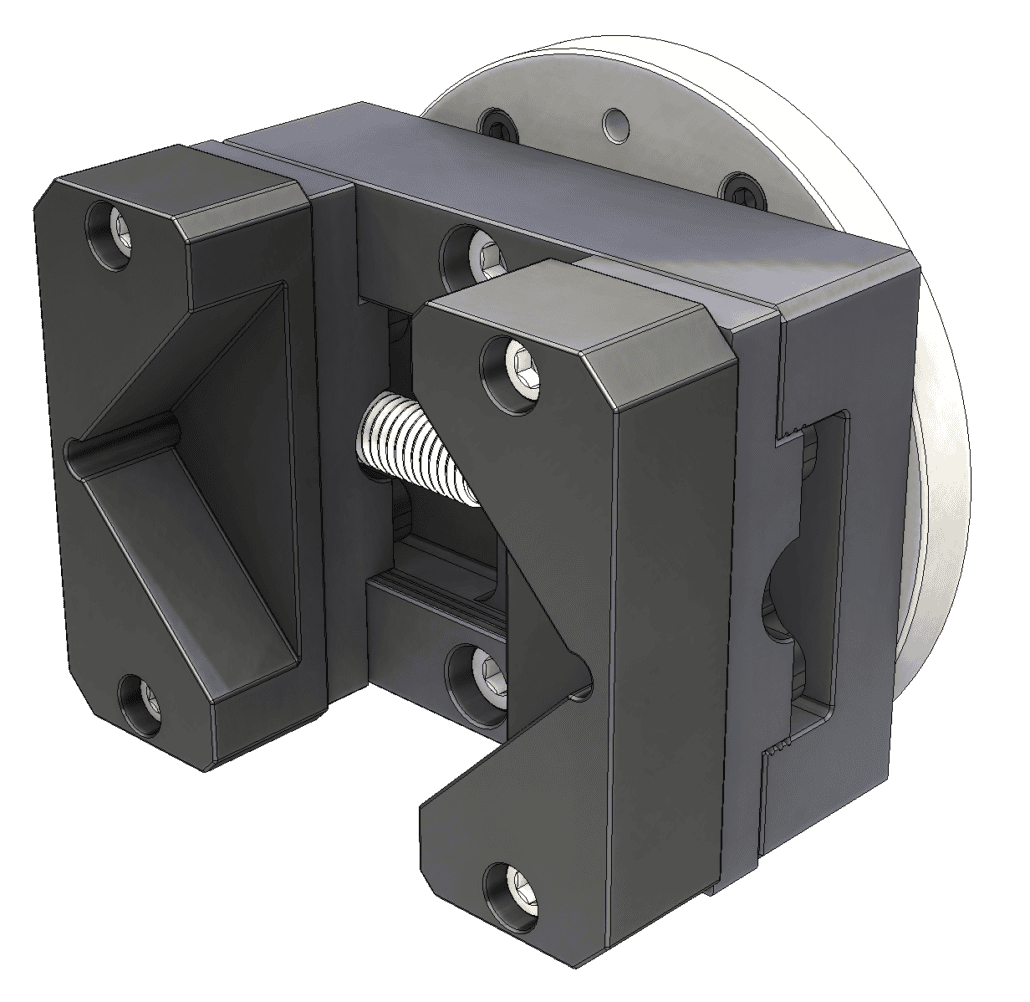

Self-Centering Vise
Model #: KRP-WH3

Price: $1,995

Consistent clamping for both round and square part profiles.

  • Self-Centering clamp jaws
  • Replaceable Jaws (Custom Available)
  • No through hole

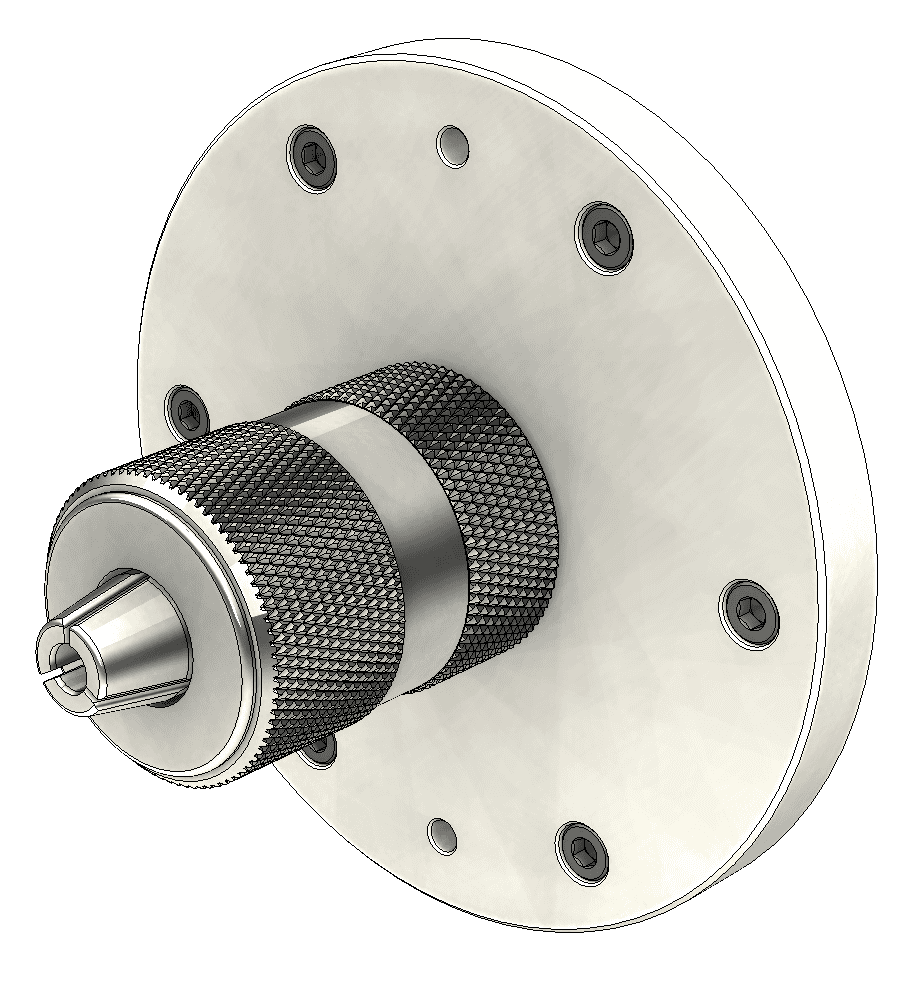

Keyless Chuck
Model #: KRP-WH4

Price: $1,630

Rapid tool-free clamping for small diameter round parts.

  • Clamping Range: 0.06" - 0.50"
  • Fast, hand actuated clamping
  • No through hole

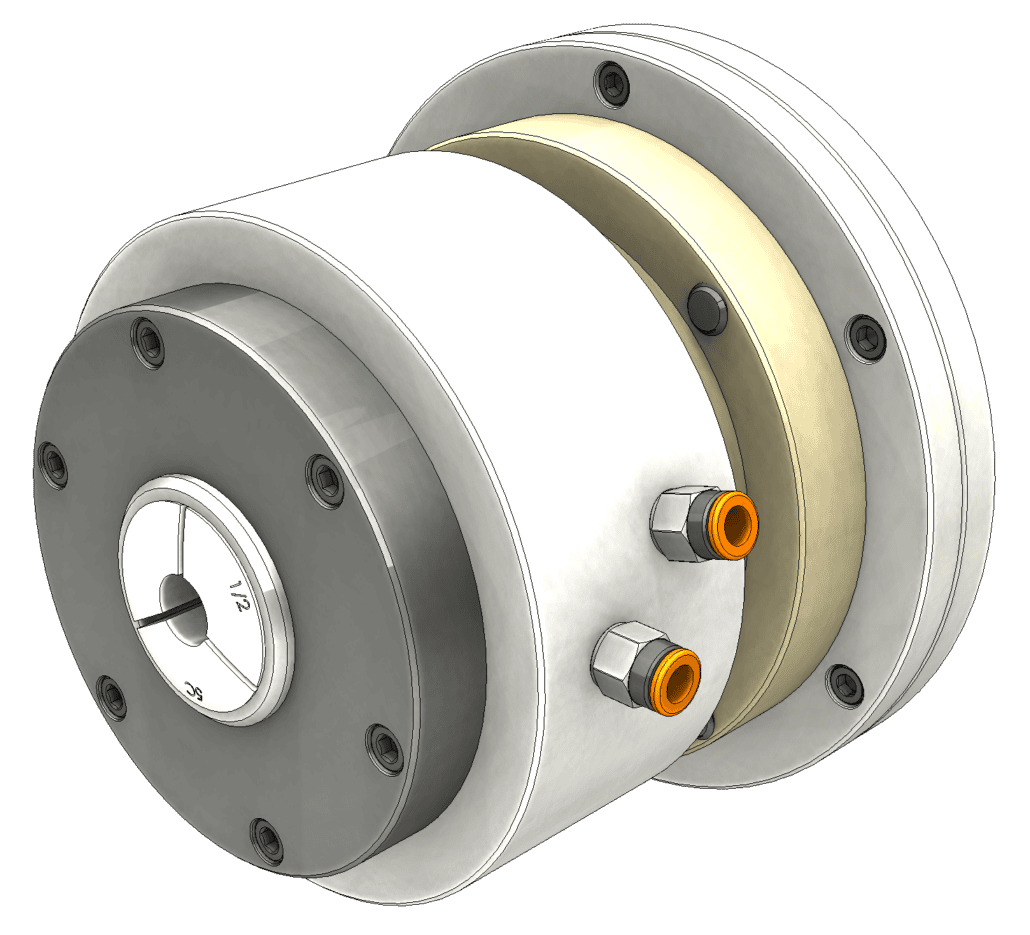

Pneumatic 5C Collet
Model #: KRP-WH5

Price: $4,200

Precision 5C collet clamping with hands-free pneumatic actuation.

  • Accepts standard 5C collets
  • Pneumatic clamping
  • 1.06" diameter through hole
Programmable Control System

The KRP enclosure’s integrated control system provides comprehensive indexing and laser marking program control directly through the enclosure’s HMI operator interface.

The control system includes a range of operation modes, covering everything from manual indexing to complex marking cycles involving multiple laser marking programs.

System Overview

  • Keyence Integration
  • Compatible with Keyence MD-X, MD-U & MD-F laser marking systems
  • Automatically change laser marking programs without operator intervention
  • Recipe Management
  • Create, name, and save custom indexing / laser marking recipes
  • Recall and edit saved recipes
  • Assign unique Keyence marking programs to different rotary index positions
  • Indexing Modes
Equal Spacing
Enter the number of positions and the system automatically distributes them evenly around 360°.
Custom Increments
Program specific absolute angles or relative step movements with unique laser programs at each position.
Continuous Rotation
Variable speed control (RPM of Deg/Sec) for unbroken 360° circumferential marks.
Manual / Jog
Move to an individual position, jog the indexer, and manually trigger the laser marking program.
KRP Enclosure Specifications
Specifications
Laser Marking Enclosure Model
KRP-BX
KRP-BU
KRP-BF
KRP-PX
KRP-PU
KRP-PF
KRP-SD-BX
KRP-SD-BU
KRP-SD-BF
KRP-SD-PX
KRP-SD-PU
KRP-SD-PF
Enclosure Type
Benchtop
Sliding Door
Indexer Type
Base Mount
Panel Mount
Base Mount
Panel Mount
Keyence Laser (not included)
MD-X
MD-U
MD-F
MD-X
MD-U
MD-F
MD-X
MD-U
MD-F
MD-X
MD-U
MD-F
Overall Size (in) L x W x H
24 x 24.8 x 27.3
33 x 27 x 33
Enclosure Size (in) L x W x H
24 x 16 x 16.3
31 x 18 x 20.8
Door Type
Hinged
Sliding Door (LH or RH configuration available)
Door Opening Size (in) W x H
13 x 14
18 x 18.5
Fixture Plate Size (in)
9 x 9 with #10-32 Tapped Holes
12 x 12 with #10-32 Tapped Holes
Fume Extractor Port Size
3 in.
Electrical Requirements
120 VAC / 60 Hz
Indexer Positional Accuracy
3 arcmin
Indexer Repeatability
±15 arcsec

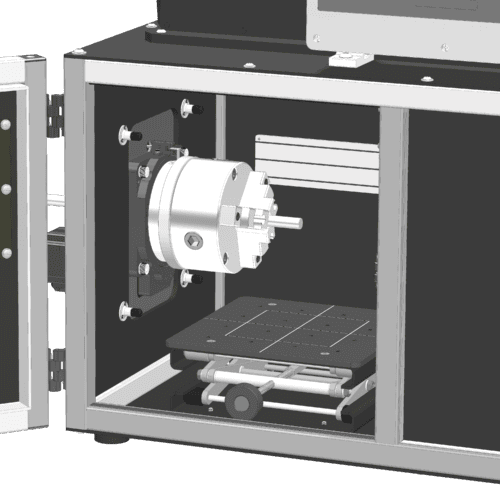

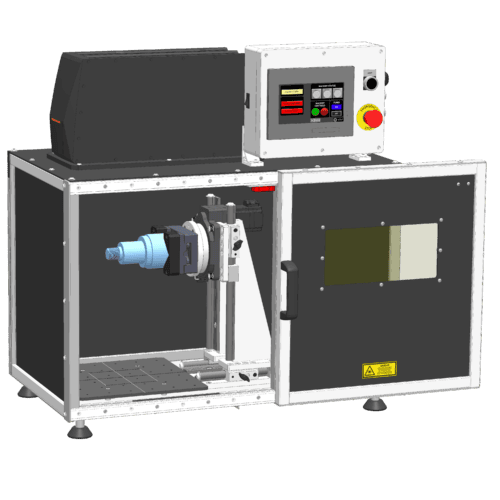

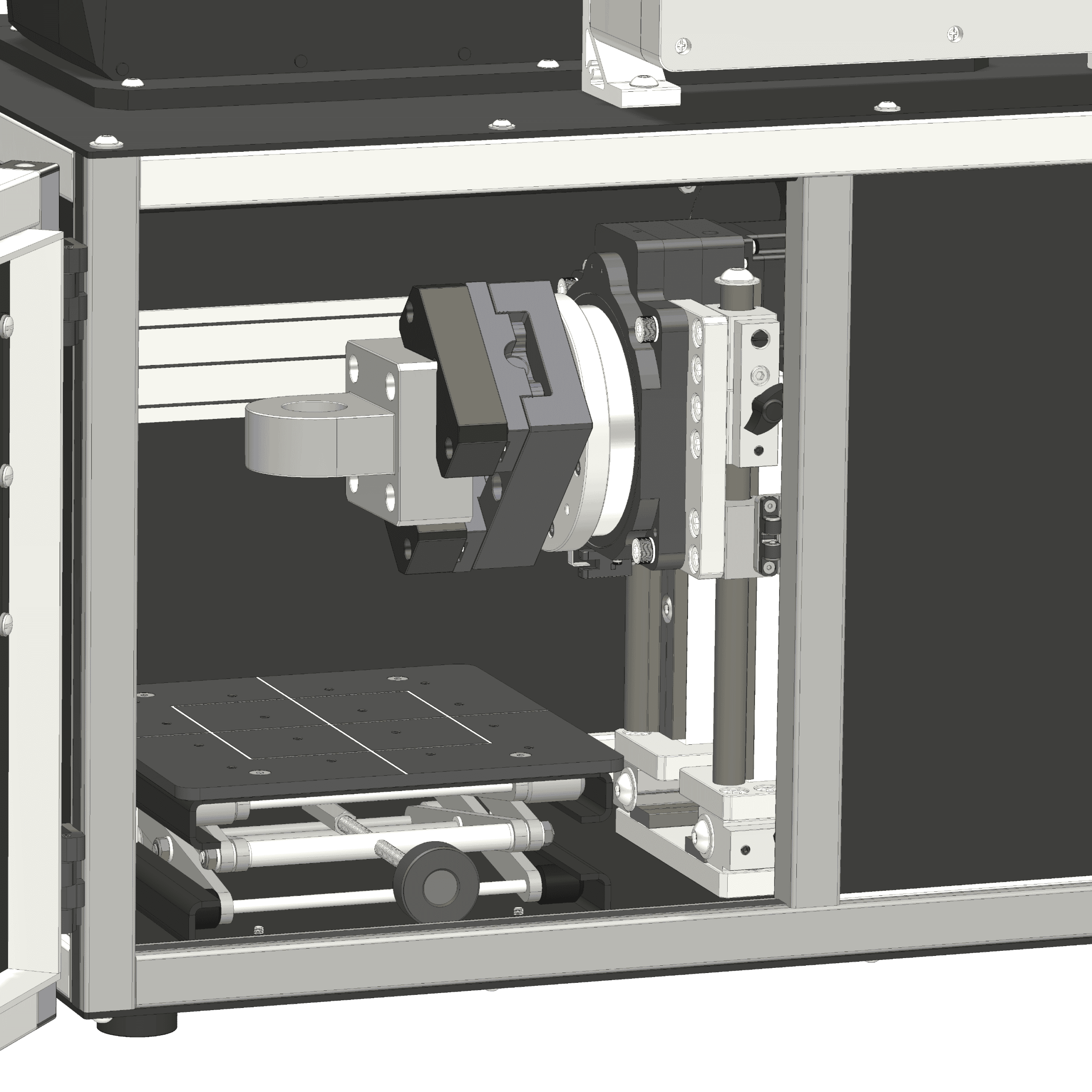

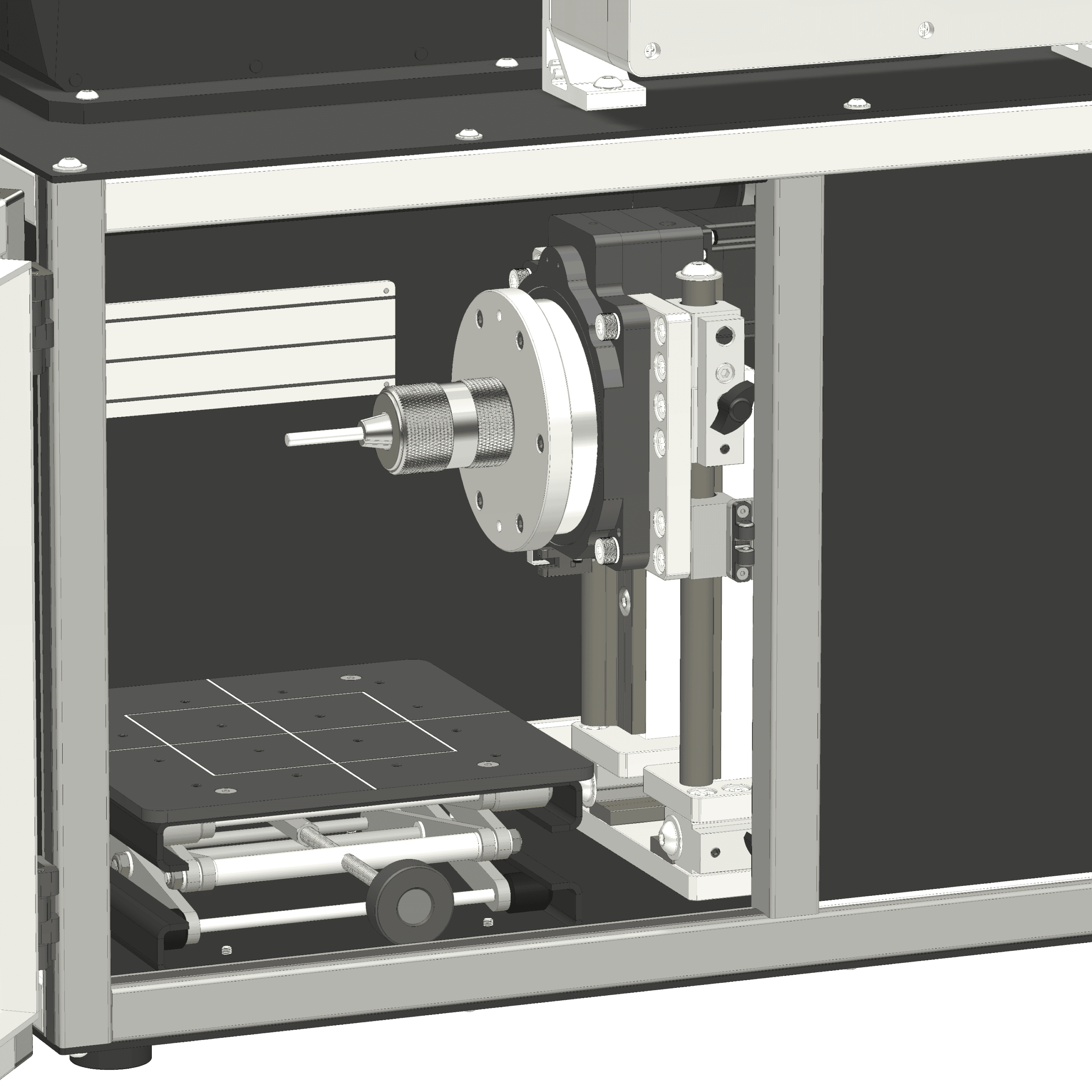

Application Examples

Accessories

Equipment Cart

This cart is specifically designed to hold our Laser Marking Enclosures, as well as the Keyence MD-X, MD-U or MD-F Laser Marker Controller.  It provides a compact, mobile solution for your entire laser marking system.

We recommend utilizing The Fumex FA1-Mini Fume Extractor if your laser marking application requires ventilation and air filtration.  Our cart includes a designated location and mounting provisions for this unit, however an alternative fume extractor may be used in this space.

The cart ships fully assembled, and hardware is included to mount our laser marking enclosure, Keyene controller and Fumex fume extractor.

Laser Enclosure Cart with Fume Extractor and Controller
Enclosure Cart for Laser Marking Enclosure, Controller and Fume Extractor

Features

  • Mounting Provisions for Keyence MD-X, MD-U & MD-F Controllers
  • Mounting Provisions for Fumex FA1-Mini Fume Extractor
  • Mounting Hardware Included
  • Two 5" Locking Swivel Casters & Two Rigid Casters
  • Ships Fully Assembled
  • Size: 36"L x 24"W x 37-3/4"H
Model Number: KMC-1
Price: $1995
