KME-SL
Side Load
Laser Marking Enclosure
For Use with Keyence MD-X, MD-U & MD-F Laser Markers

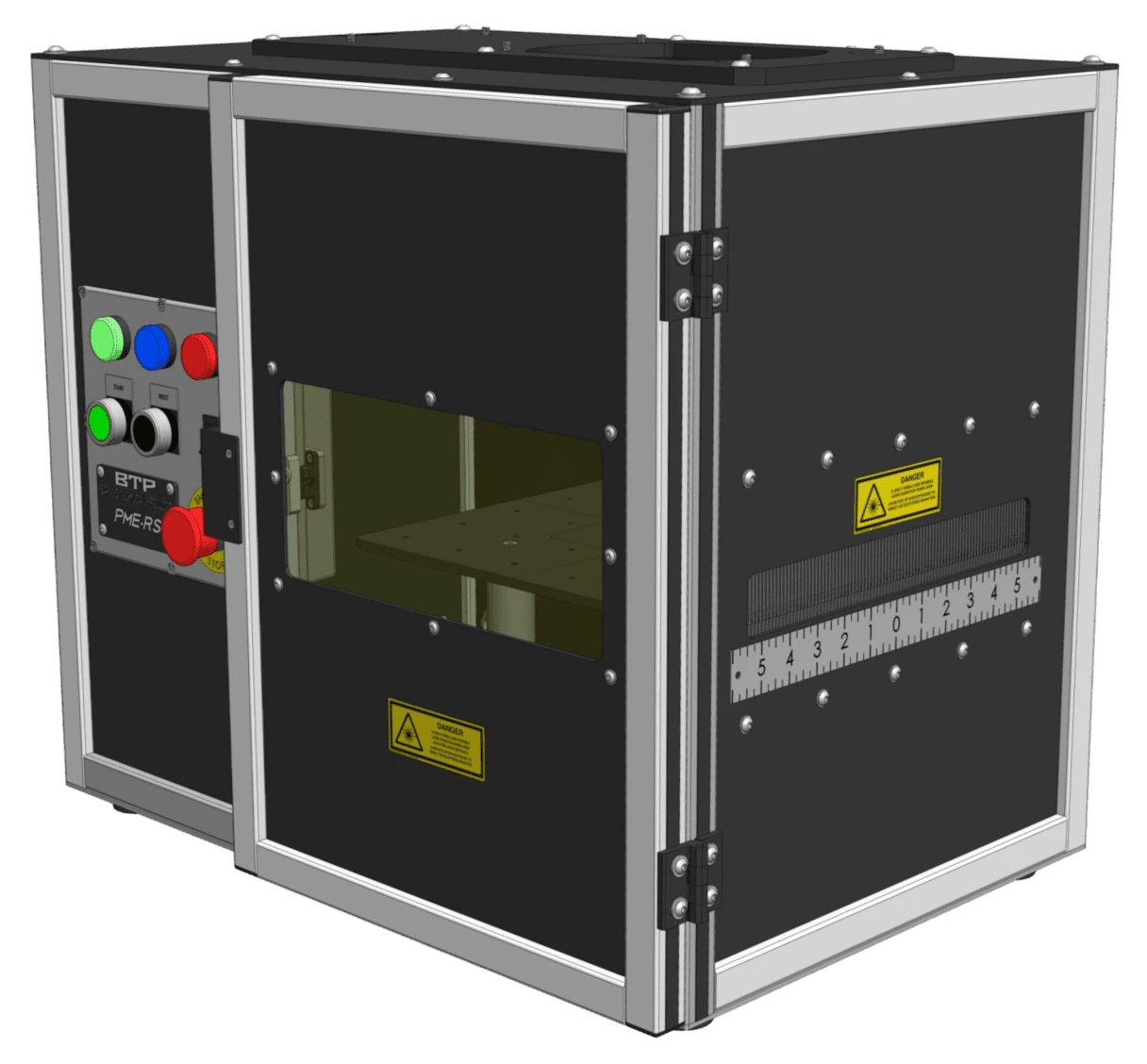

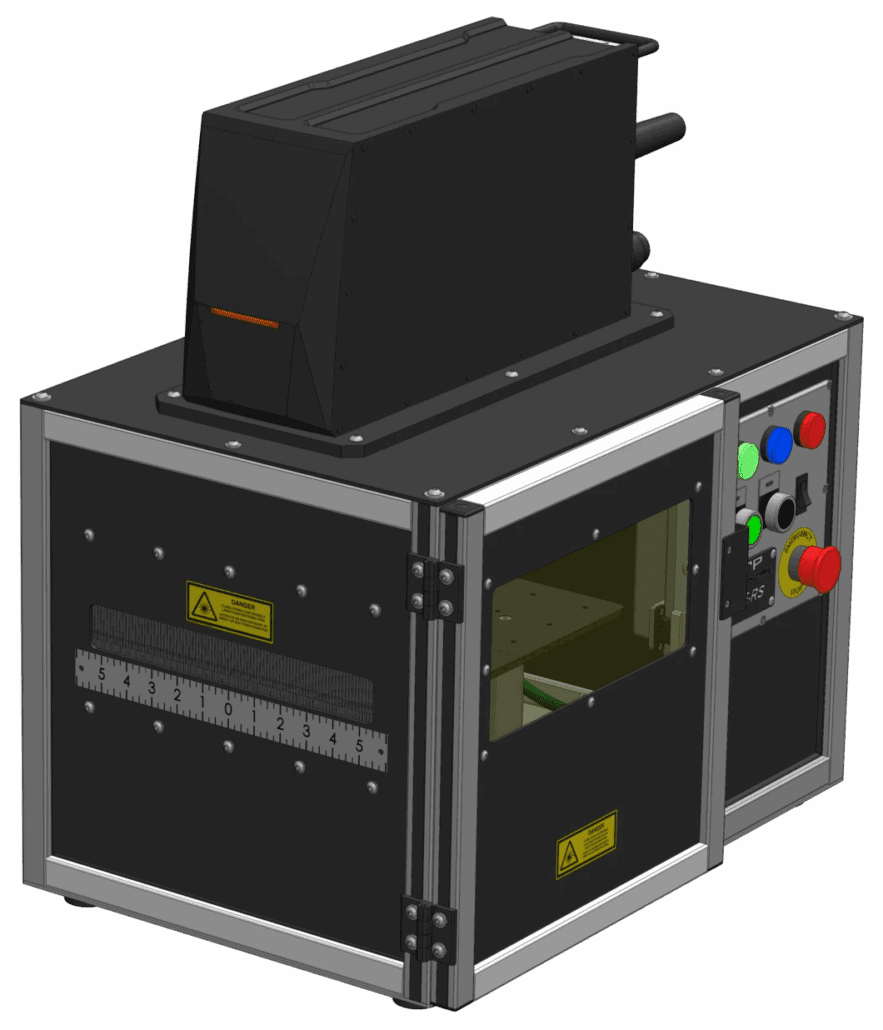

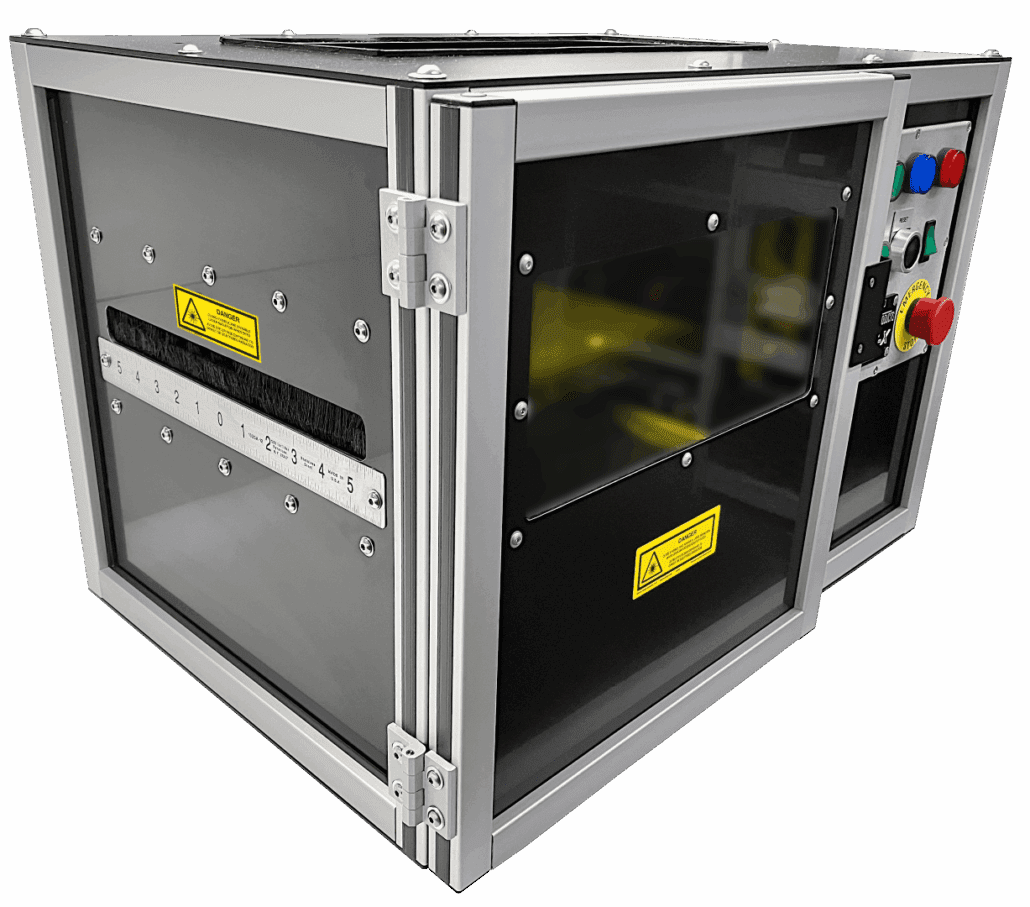

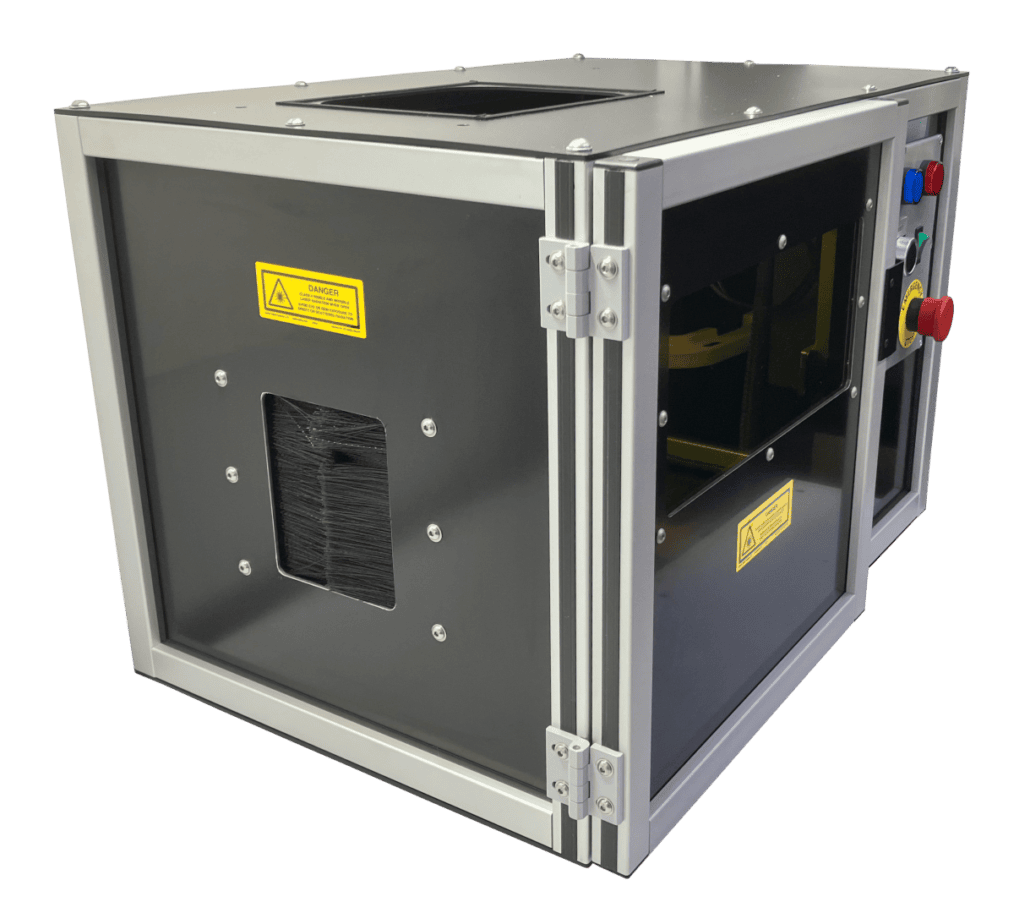

The KME-SL is a versatile, space-efficient laser marking enclosure designed for use with Keyence MD-X, MD-U, and MD-F laser markers.

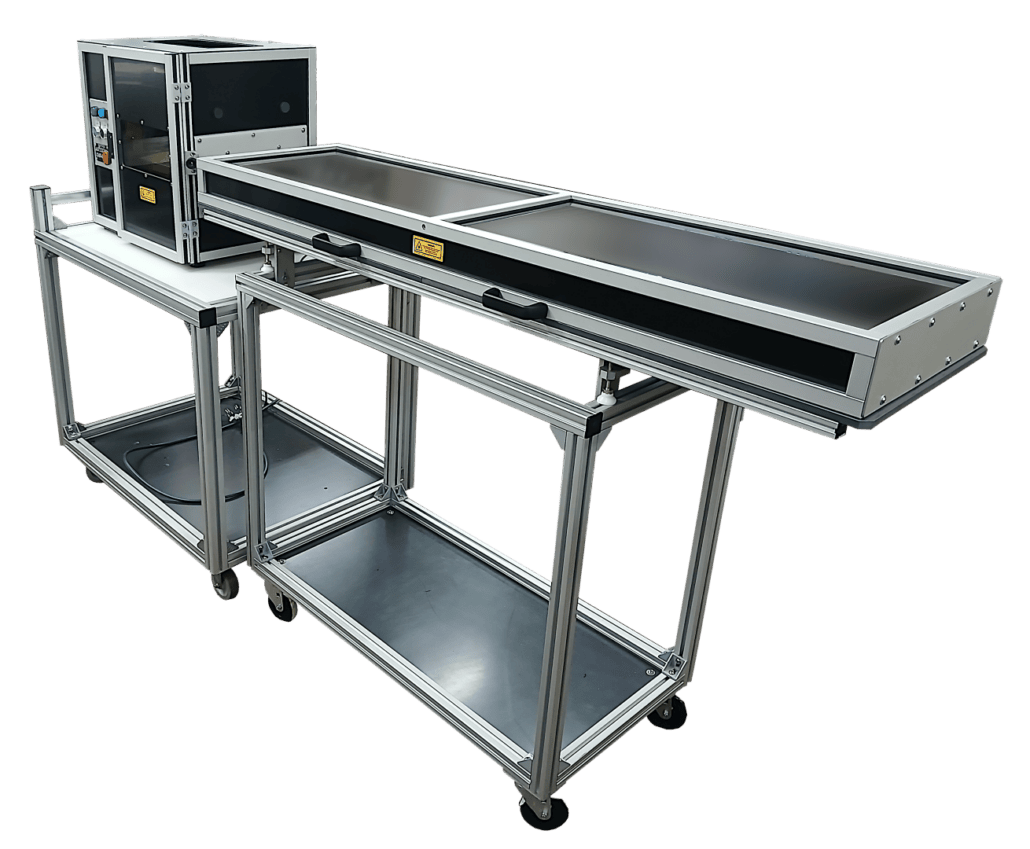

Built on the proven KME-S platform, the KME-SL adds a brush-sealed side slot or round port, allowing long parts to be inserted safely into the enclosure for laser marking.
Both the access door and side slot/port can be used for part loading, giving you greater flexibility for a variety of part sizes and workflows.
Available in left-hand or right-hand configurations, this enclosure offers a compact, reliable, and cost-effective solution for countless laser marking setups.
Learn more about Keyence Laser Markers Here
Features
- Compatible with MD-X, MD-F & MD-U Laser Markers
- Model-Specific Laser Marker Mount Plate
- Large Safety-Interlocked Access Door
- Available in Left or Right Hand Configurations
- Brush-Sealed Side Load Feature
- Part Fixture Plate (Scissor Jack or Fixed Mount)
- Laser Marker Focal Zone Visual Reference
- Fume Extractor Port with Cover
- LED Interior Light
- Control Panel with Indicator Lights, Start/Stop Buttons, E-Stop and Light Switch
Side Load Options

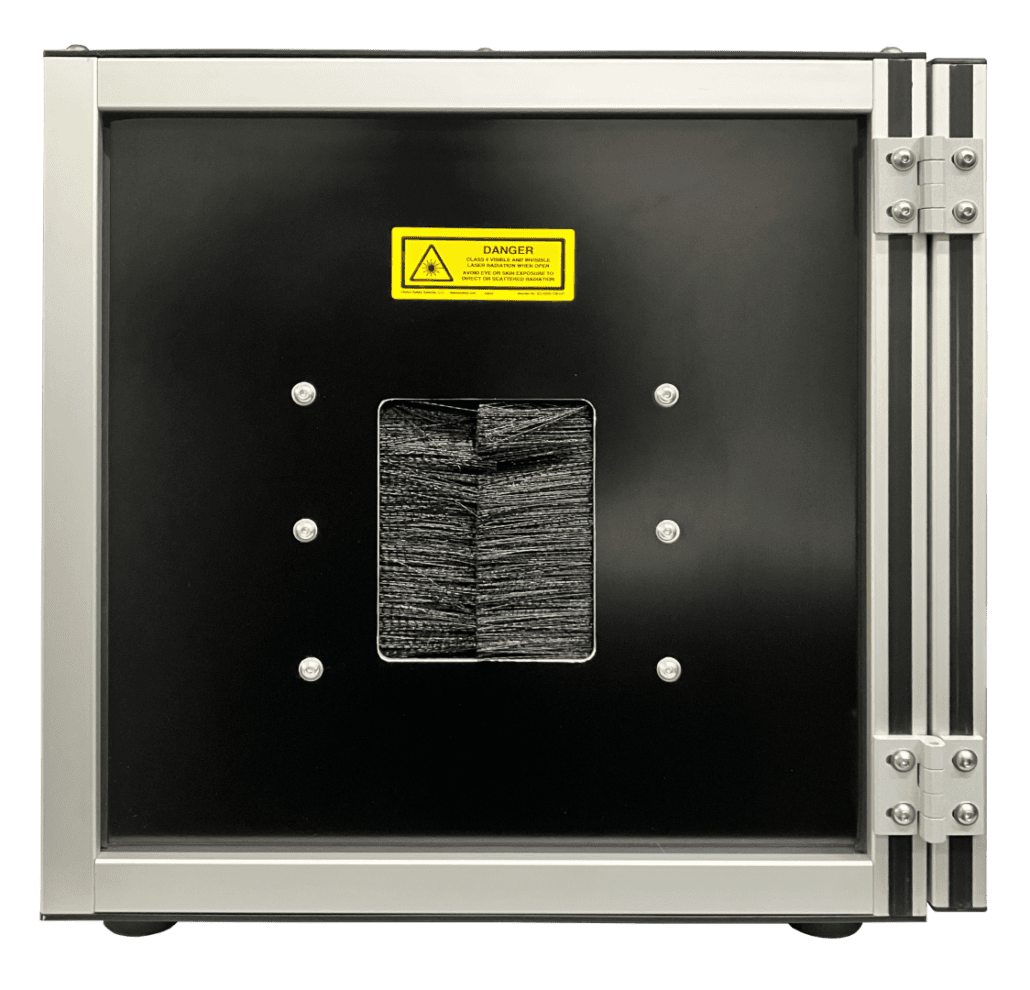

Each side-load option features a brush-sealed opening that allows parts to be inserted into the enclosure, while effectively blocking hazardous laser light to maintain a safe work environment.

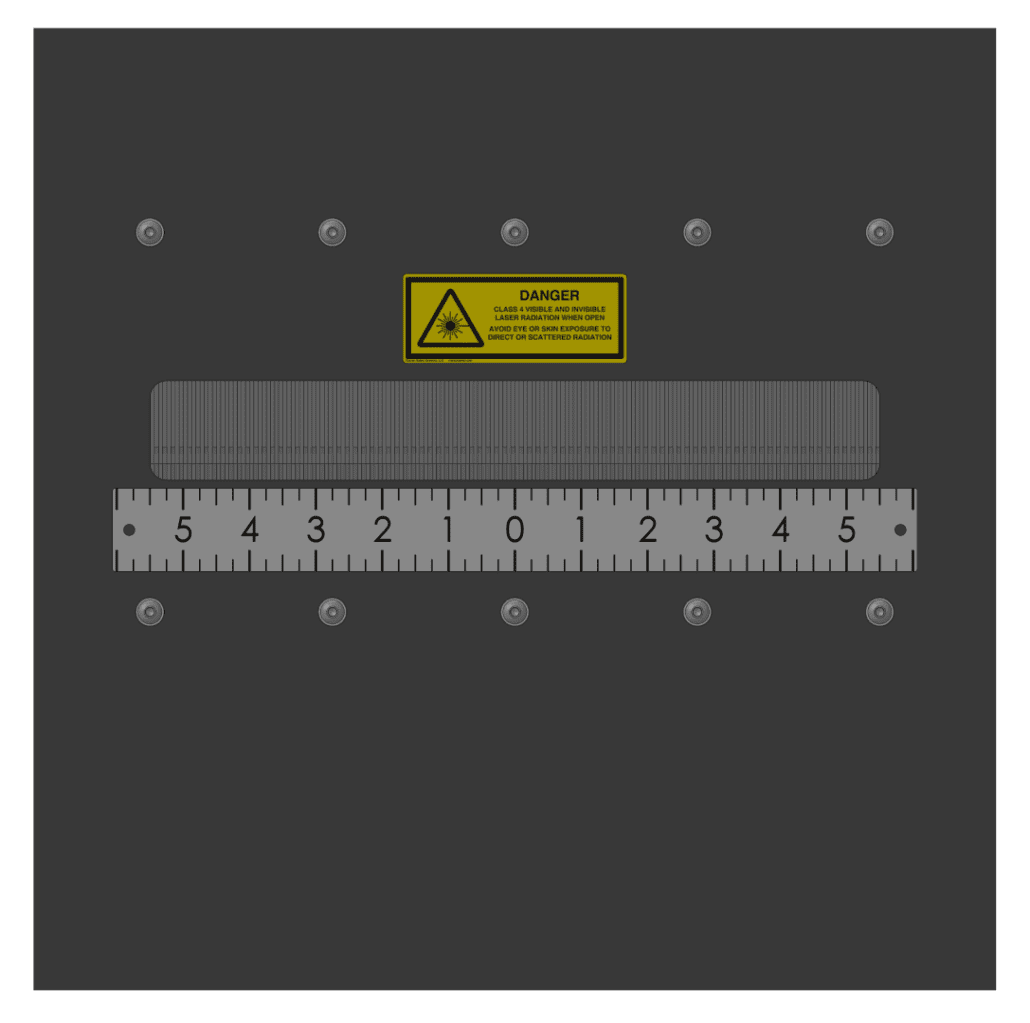

For non-cylindrical parts up to 10.5″ wide x 1″ tall. Includes center-finding scale.

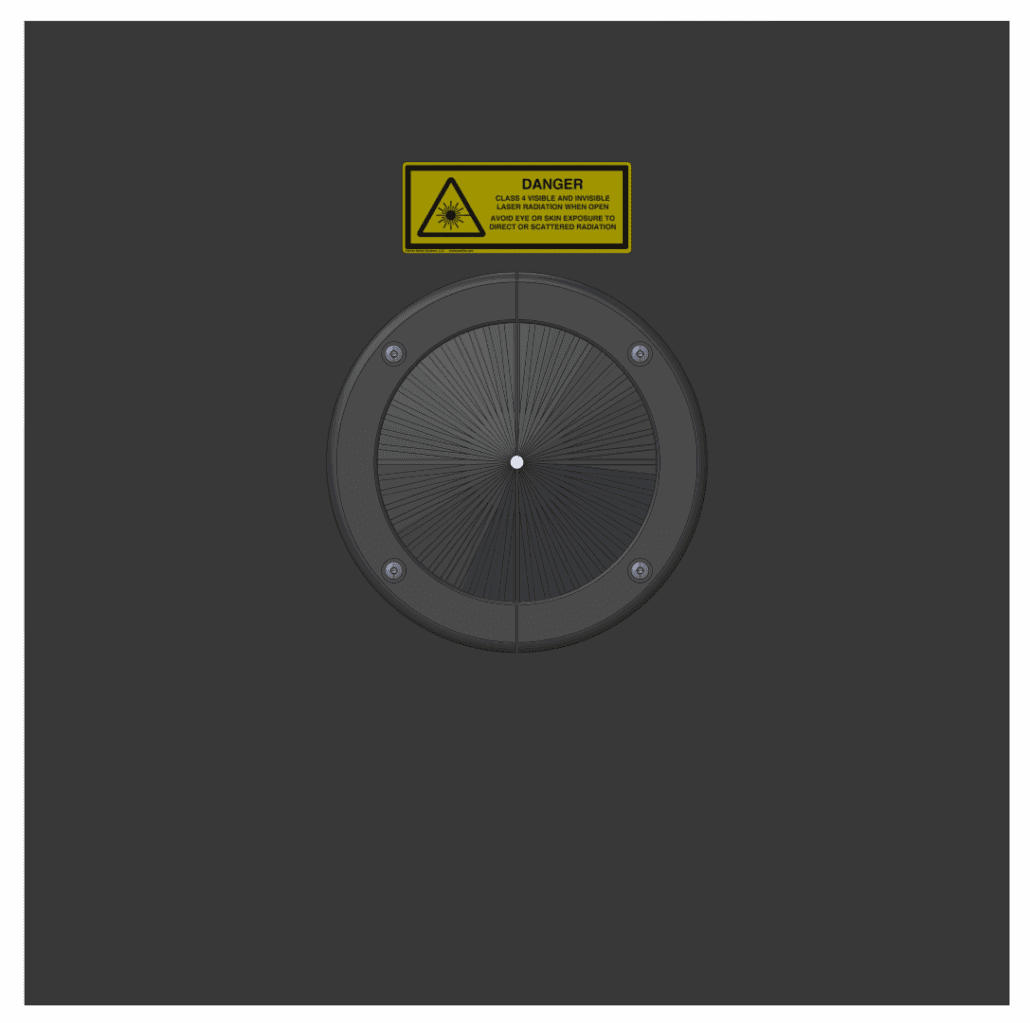

For cylindrical parts from 0.5″ to 1.5″ in diameter.
For cylindrical parts from 1.5″ to 4″ in diameter.
Enclosure Models

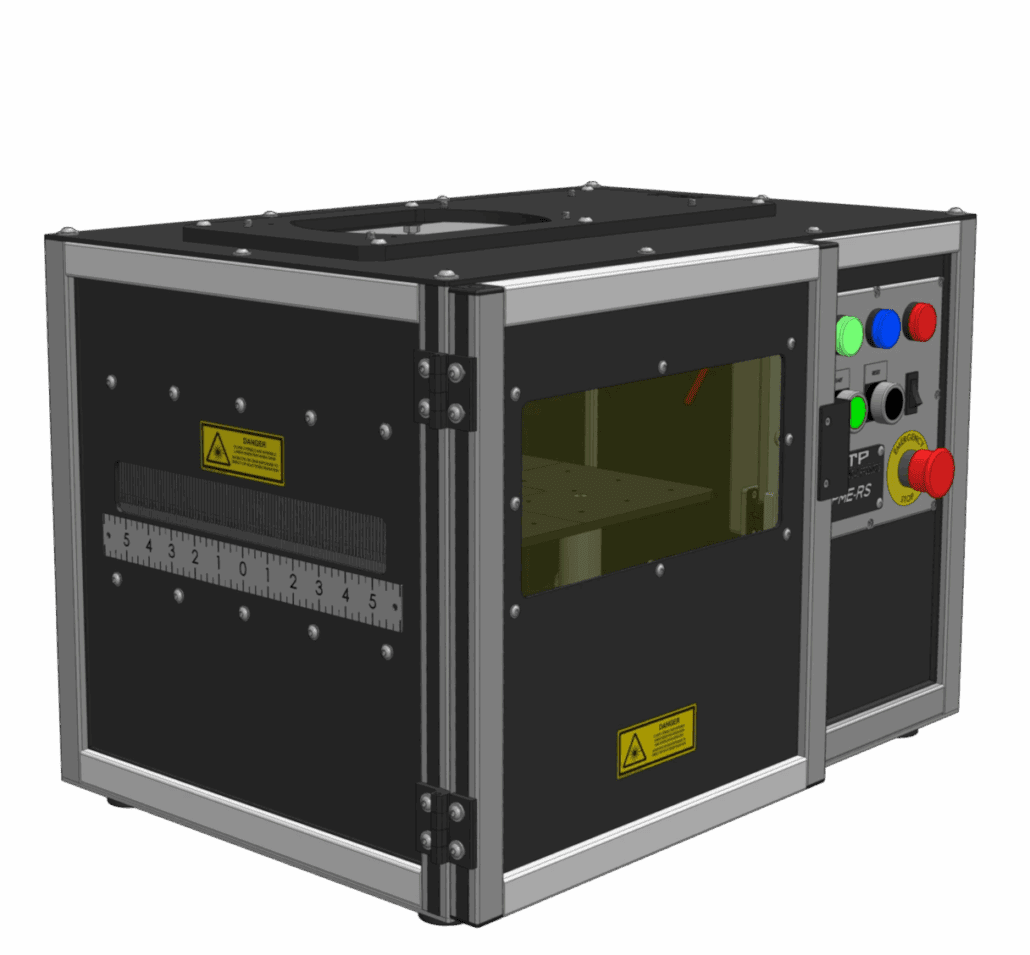

Standard Size

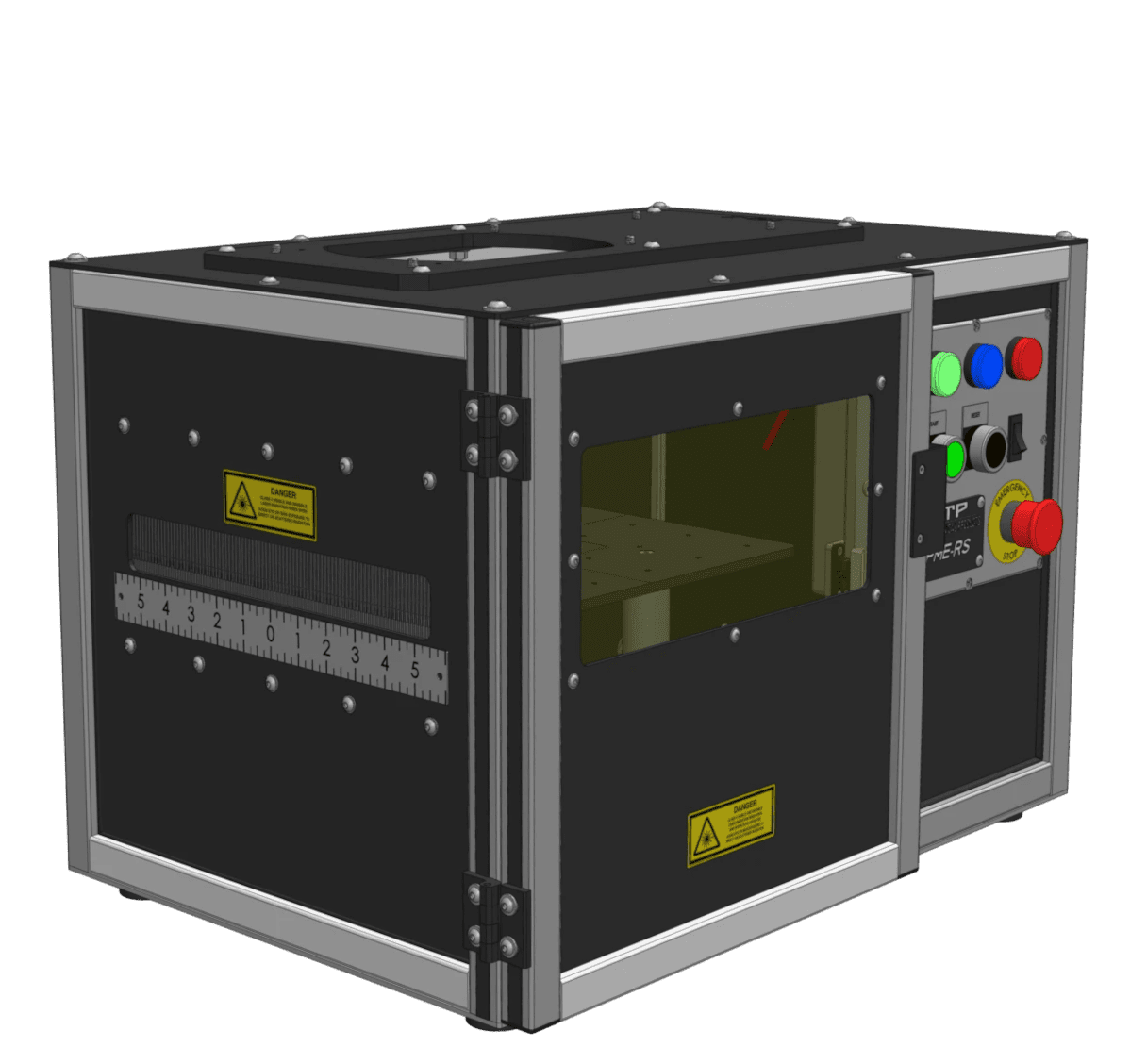

Left-Hand Configuration
$6,284
For Standard Marking Area Lasers.
Access Door & Side Load on Left Side
Access Door & Side Load on Left Side

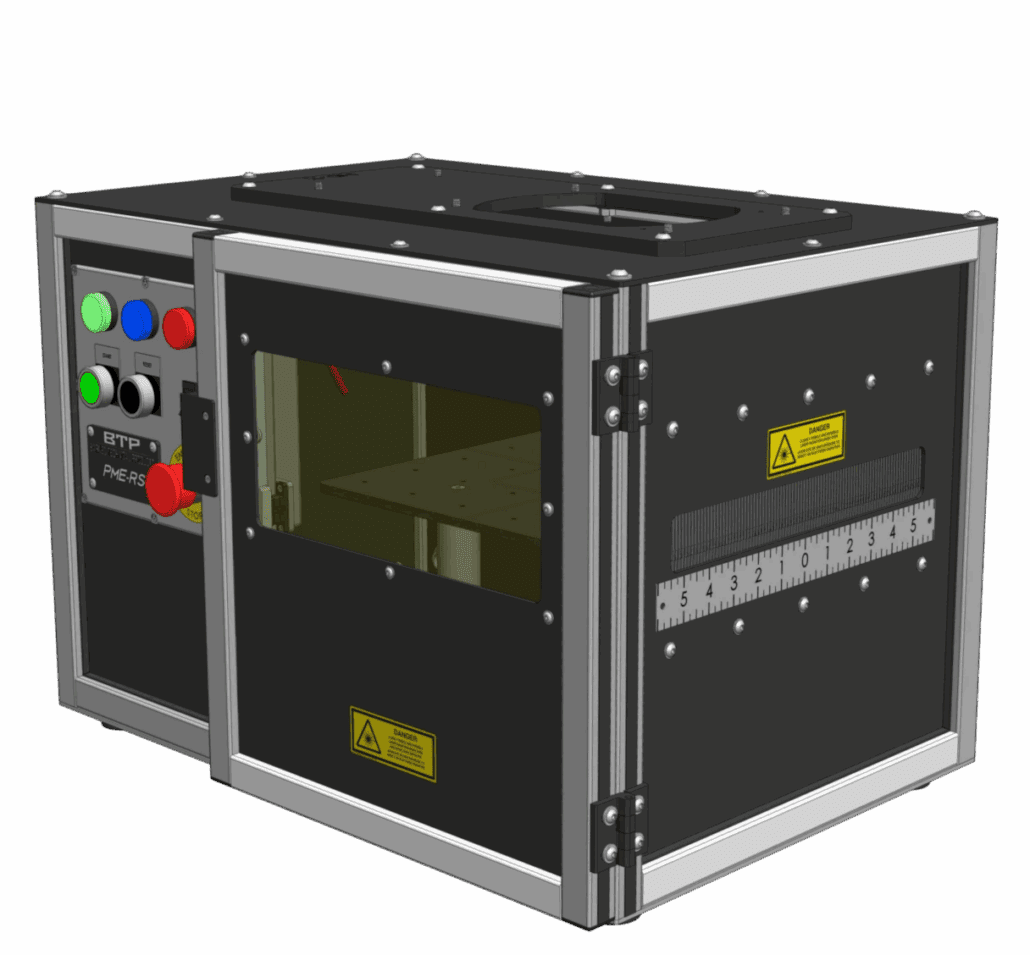

Standard Size
Right-Hand Configuration
$7,325
For Standard Marking Area Lasers.
Access Door & Side Load on Right Side
Access Door & Side Load on Right Side

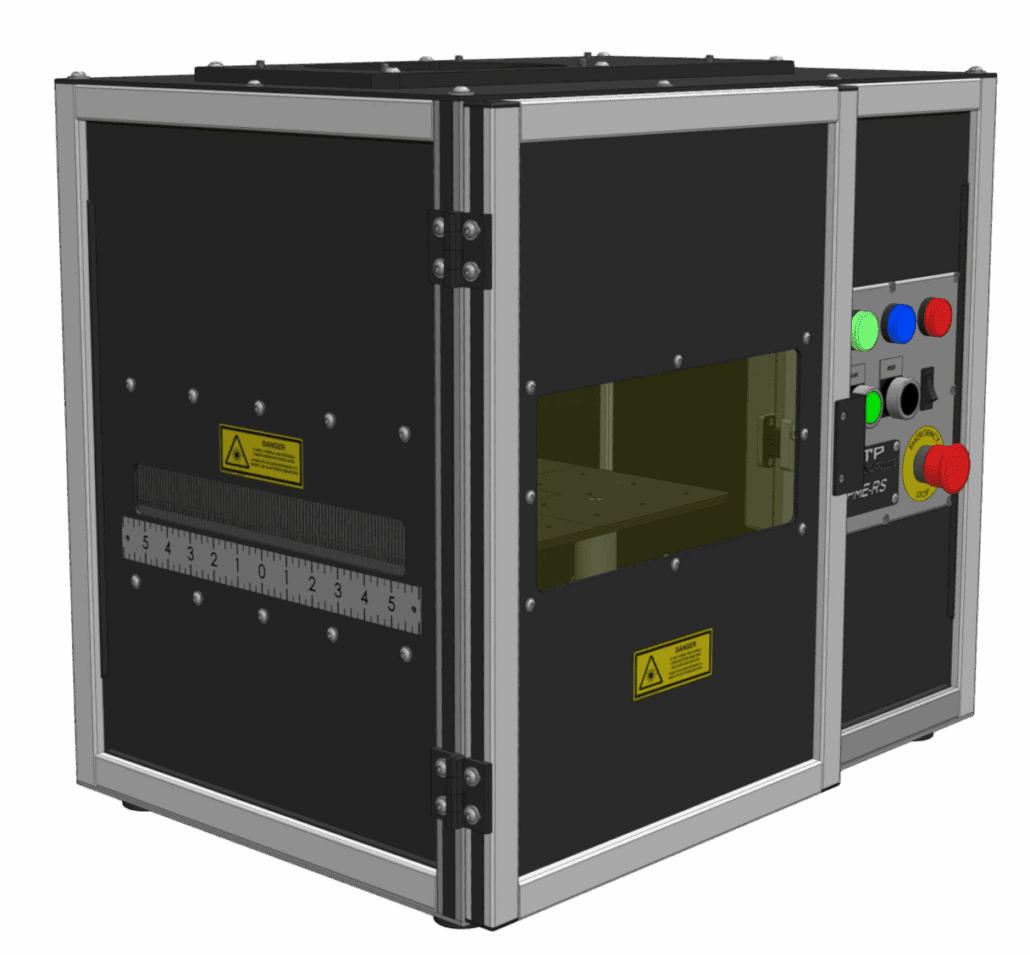

Tall Size
Left-Hand Configuration
$6,995
For Wide Marking Area Lasers.
Access Door & Side Load on Left Side
Access Door & Side Load on Left Side

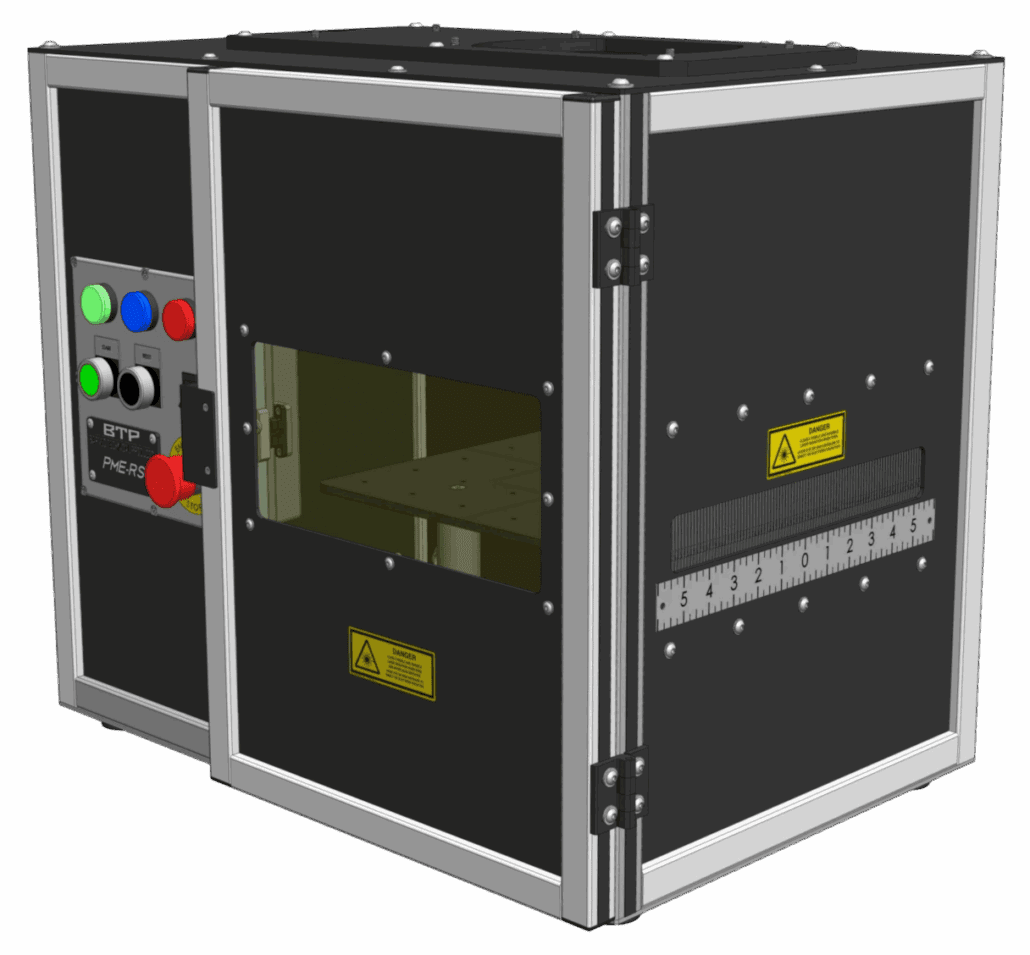

Tall Size
Right-Hand Configuration
$7,736
For Wide Marking Area Lasers.
Access Door & Side Load on Right Side
Access Door & Side Load on Right Side
Enclosure Model Numbers
| Enclosure Model | Enclosure Size | Access Side | Side Load Option | Laser Marking Area | Price |
|---|---|---|---|---|---|
|
KME-SL-SLS |
Standard |
Left |
Rectangular |
Standard |
$6,284 |
|
KME-SL-SL4 |
Standard |
Left |
4 in. Circular |
Standard |
|
|
KME-SL-SL6 |
Standard |
Left |
6 in. Circular |
Standard |
|
|
KME-SL-SRS |
Standard |
Right |
Rectangular |
Standard |
$7,325 |
|
KME-SL-SR4 |
Standard |
Right |
4 in. Circular |
Standard |
|
|
KME-SL-SR6 |
Standard |
RIght |
6 in. Circular |
Standard |
|
|
KME-SL-TLS |
Tall |
Left |
Rectangular |
Wide |
$6,995 |
|
KME-SL-TL4 |
Tall |
Left |
4 in. Circular |
Wide |
|
|
KME-SL-TL6 |
Tall |
Left |
6 in. Circular |
Wide |
|
|
KME-SL-TRS |
Tall |
Right |
Rectangular |
Wide |
$7,736 |
|
KME-SL-TR4 |
Tall |
Right |
4 in. Circular |
Wide |
|
|
KME-SL-TR6 |
Tall |
Right |
6 in. Circular |
Wide |
Need rotational capabilities for your marking application? Check out our series of Rotary Indexer Kits
Accessories
Fixture Plate

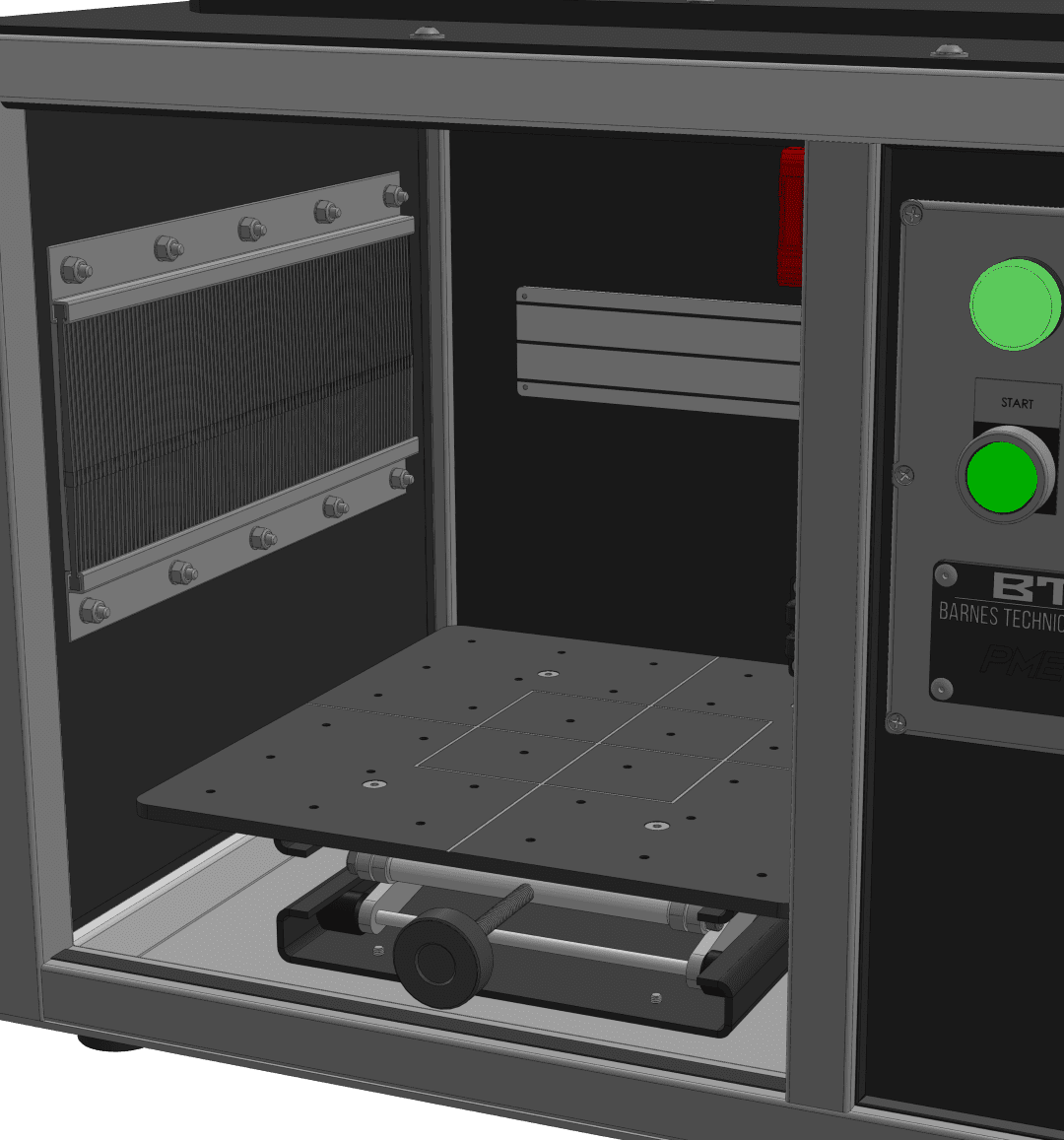

Each enclosure includes a 12″ x 12″ precision fixture plate for accurately locating and mounting parts or tooling.
The plate is made from black anodized aluminum and has 32 tapped mounting holes (#10-32) to support a wide range of fixturing and mounting setups.

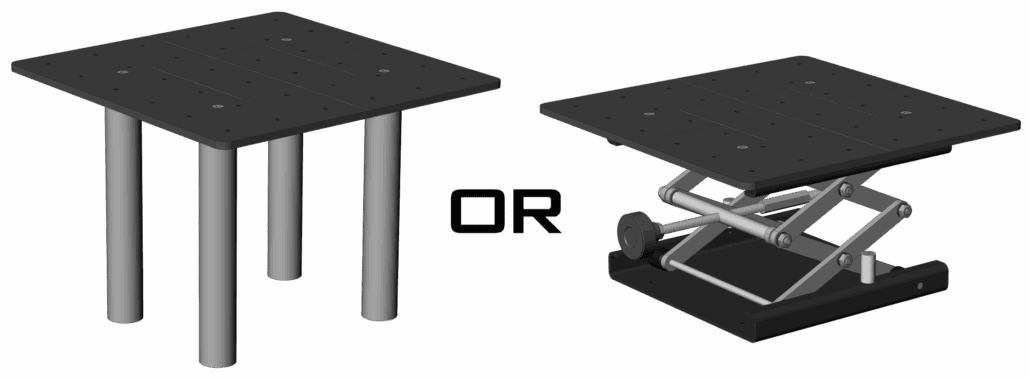

You can choose to have the fixture plate mounted on fixed-height risers, customized to your part requirements, or on an adjustable-height scissor jack
Features
- 32 Tapped Mounting Holes (#10-32 thread)
- Engraved Center Marking Crosshairs
- Engraved Standard Marking Area Window
- Material: Black Anodized Aluminum
- Size: 12" x 12"
Equipment Cart
This cart is specifically designed to hold our KME-SL Laser Marking Enclosure, as well as the Keyence MD-X, MD-U or MD-F Laser Marker Controller. It provides a compact, mobile solution for your entire laser marking system.
We recommend utilizing The Fumex FA1-Mini Fume Extractor if your laser marking application requires ventilation and air filtration. Our cart includes a designated location and mounting provisions for this unit, however an alternative fume extractor may be used in this space.
The cart ships fully assembled, and hardware is included to mount our laser marking enclosure, Keyene controller and Fumex fume extractor.
* Laser Marker, Controller & Fume Extractor Not Included
Features
- Mounting Provisions for Keyence MD-X, MD-U & MD-F Controllers
- Mounting Provisions for Fumex FA1-Mini Fume Extractor
- Mounting Hardware Included
- Two 5" Locking Swivel Casters & Two Rigid Casters
- Ships Fully Assembled
- Size: 36"L x 24"W x 37-3/4"H
Model Number: KMC-1
Price: $1995.00
Workholding Kits
Improve the speed and accuracy of your laser marking operations by using one of our workholding kits.
With three kits available, each one is designed to mount to our fixture plate and provides numerous different options for securing parts.
- Flat Jaw & V-Jaw Vise Kits
- Modular Part Holding Kit
- Angle Bar Kit
Visit our Workholding Kit page to see the available options, pricing and for more information.
Rotary Indexer Kits
Seamlessly integrate rotational capabilities to your laser marking enclosure with one of our rotary indexer kits.
Available in both manual and pneumatic options with a choice of three workholding methods.
Visit our Rotary Indexer Kit page to see the available options, pricing and for more information.
