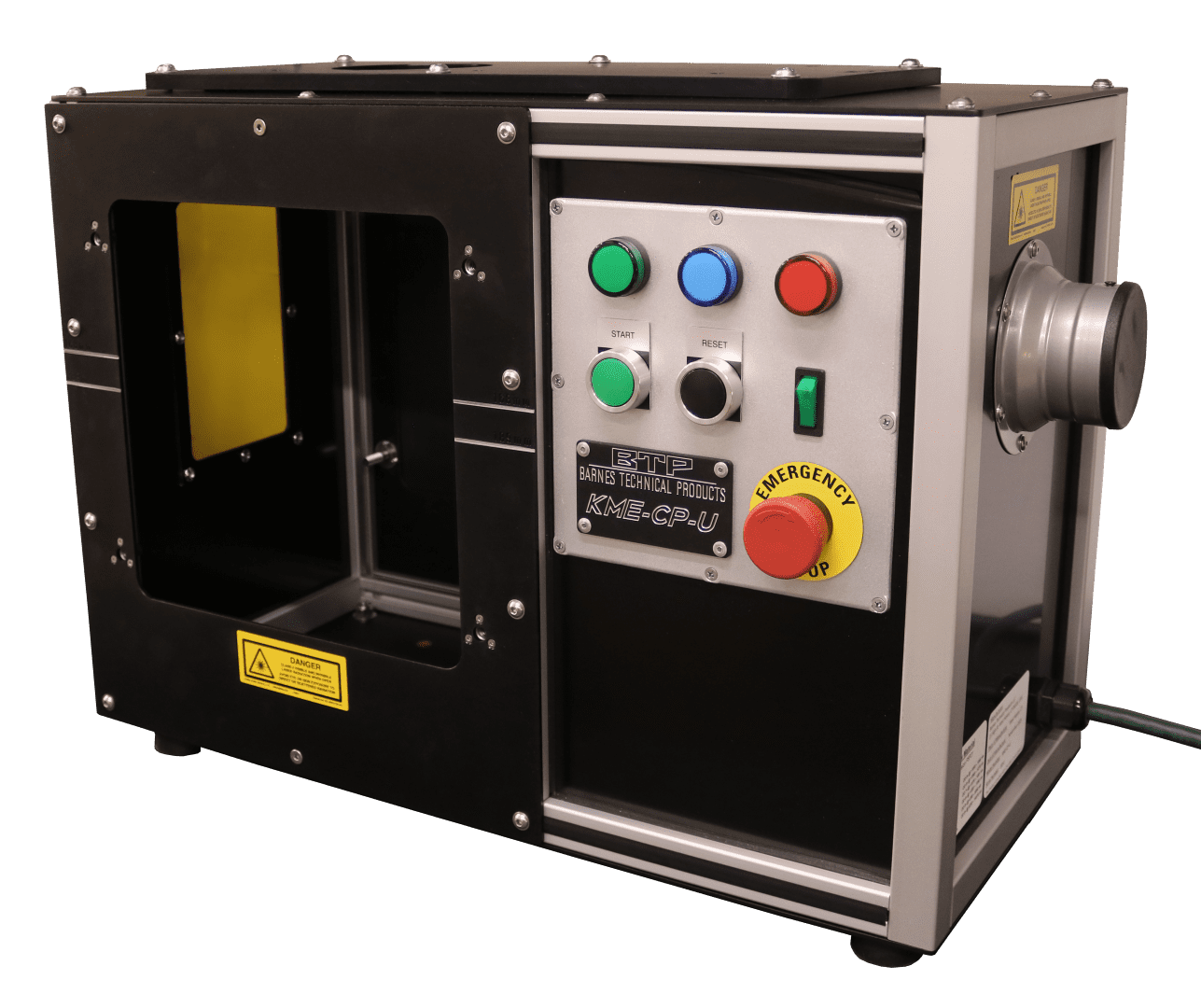

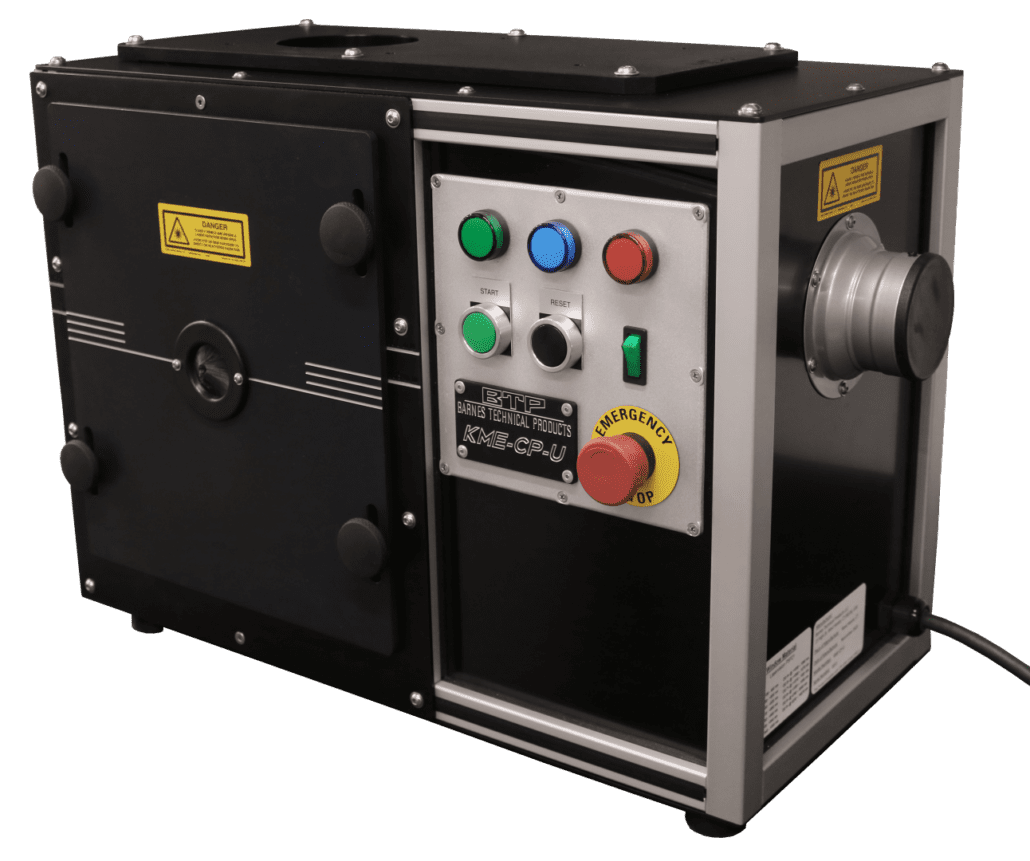

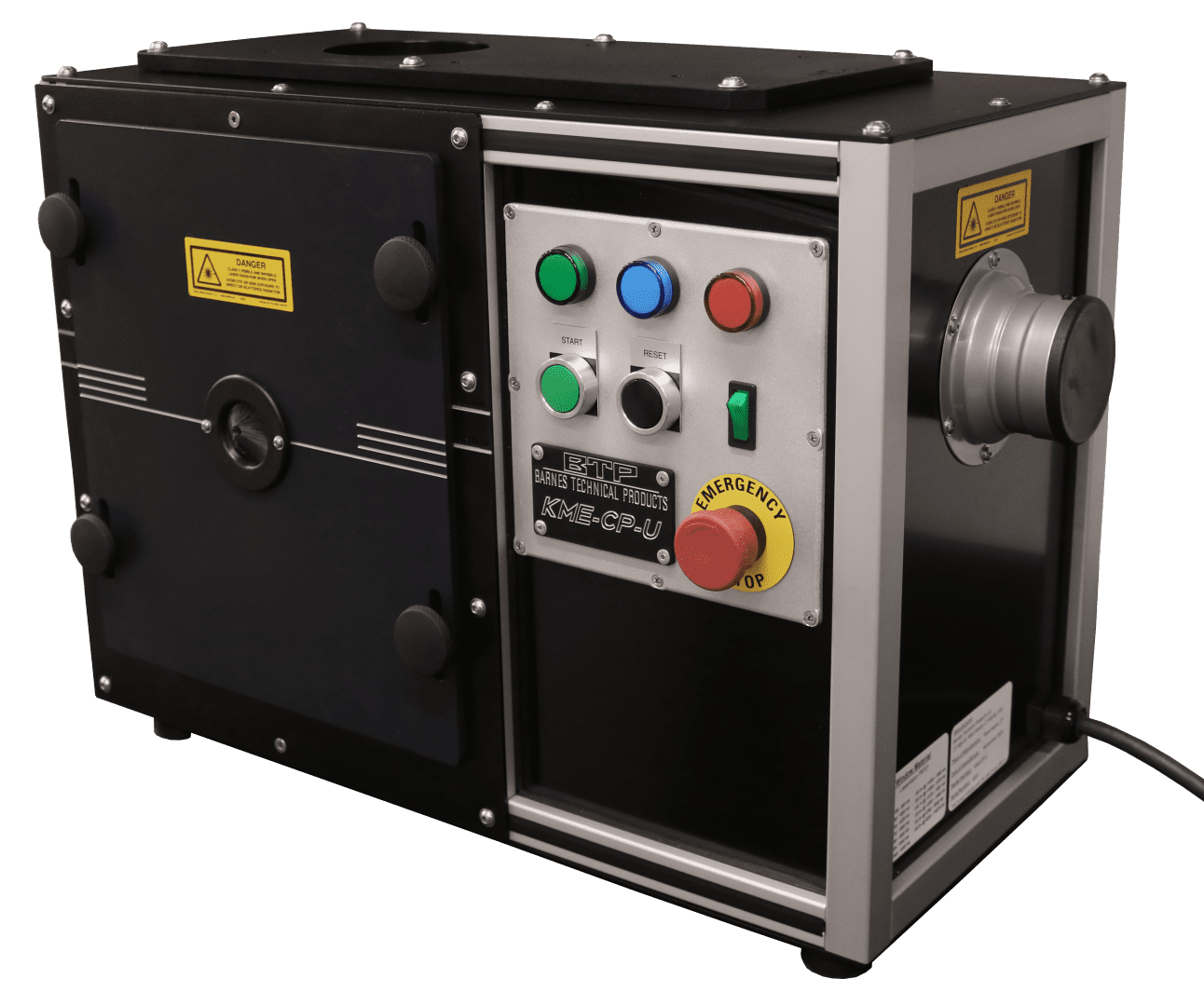

KME-CP
Pass-Through
Laser Marking Enclosure
For Use with Keyence MD-X, MD-U & MD-F Laser Markers
* Laser Marker Not Included

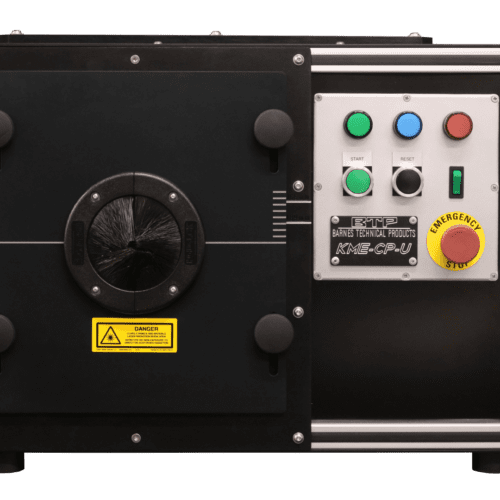

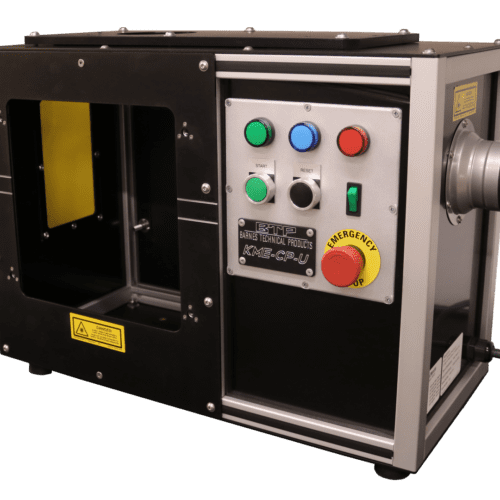

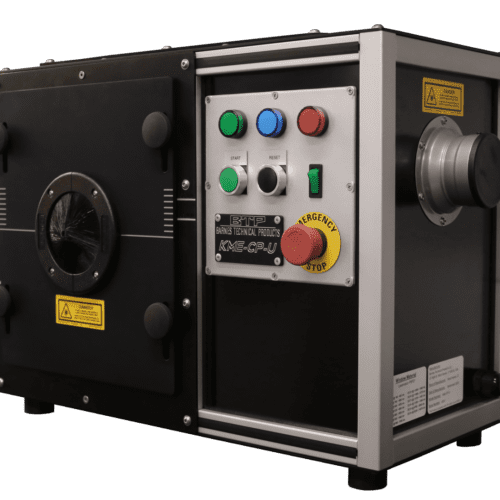

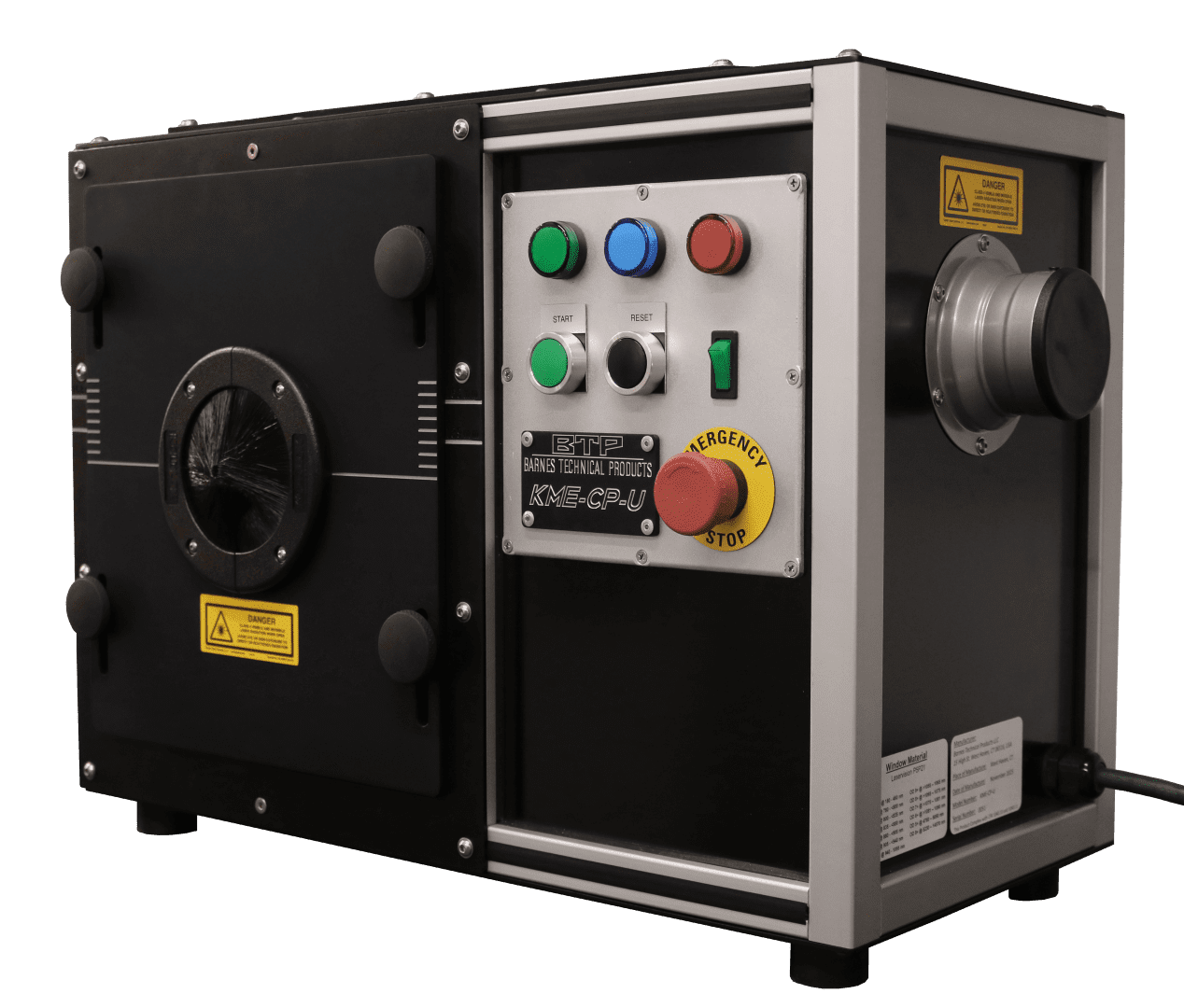

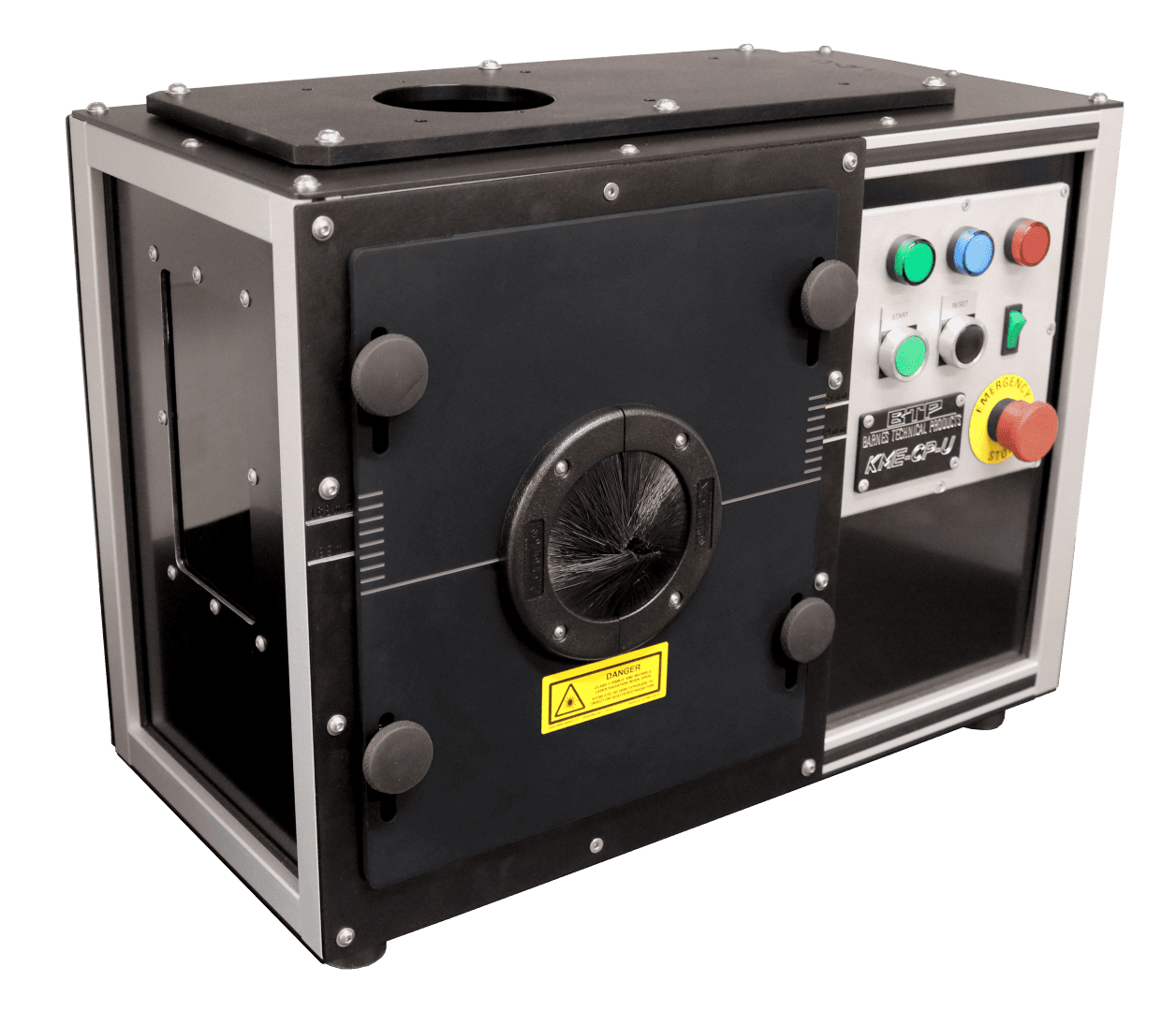

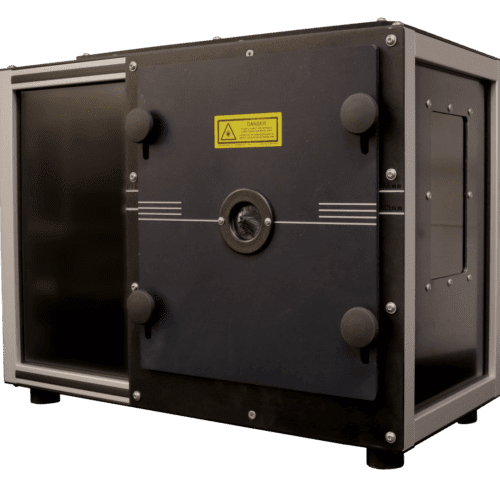

The KME-CP Laser Marking Enclosure is designed for safe and efficient marking of cables and other long cylindrical or non-cylindrical parts that do not fit in our standard sized enclosure.
Interchangeable Pass-Through Plates, each featuring a different adjustable brush seal configuration, allow this enclosure to work with a variety of part shapes and sizes.
Compatible with Keyence MD-X, MD-U, and MD-F laser markers, the enclosure includes one Pass-Through Plate set, with additional sets available as add-ons.
This enclosure is the perfect solution for both inline and standalone marking operations, offering flexibility for countless different production setups.
Learn more about Keyence Laser Markers Here
* Laser Marker Not Included

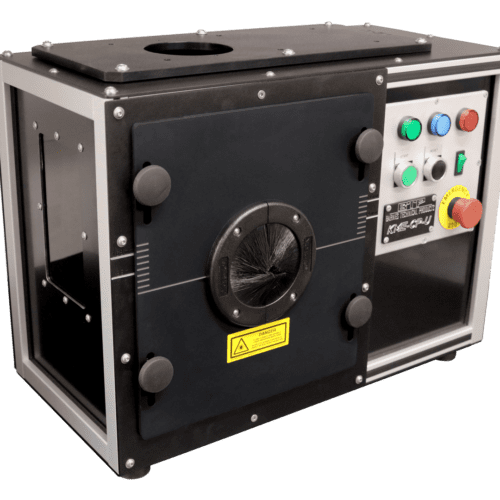

* Rectangular Pass-Through Plate Shown
Features
- For marking cables, tubes, and other long parts
- Compatible with MD-X, MD-U & MD-F Laser Markers

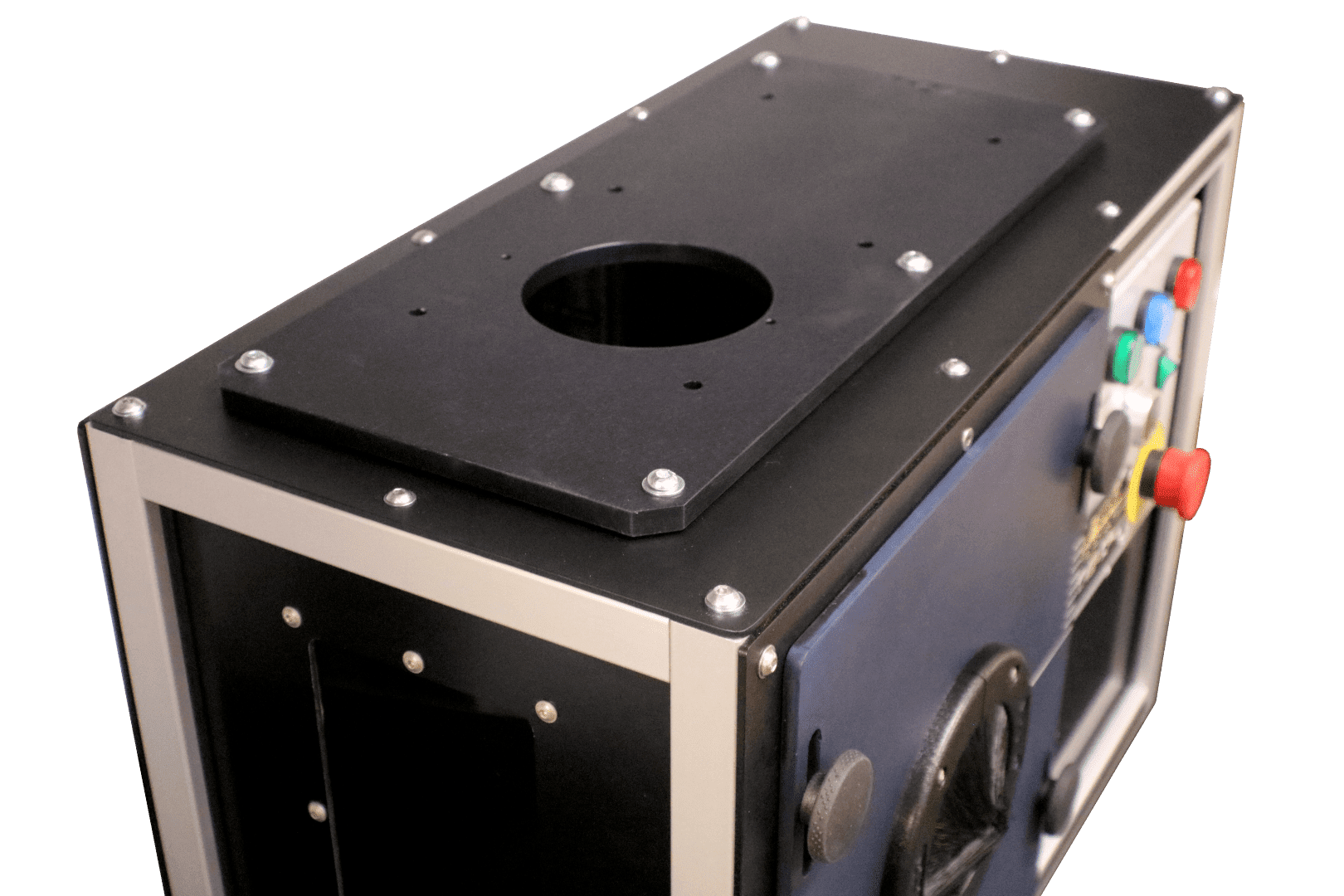

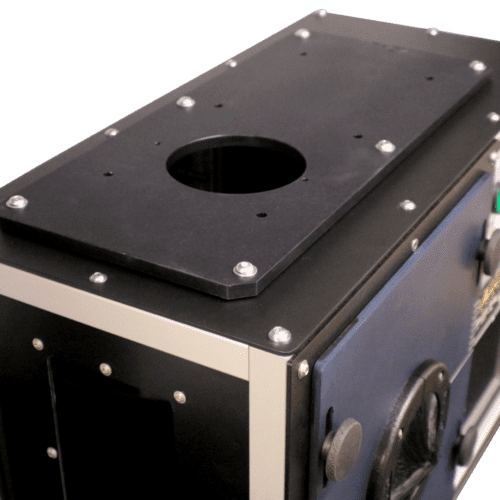

- Model-Specific Laser Marker Mount Plate

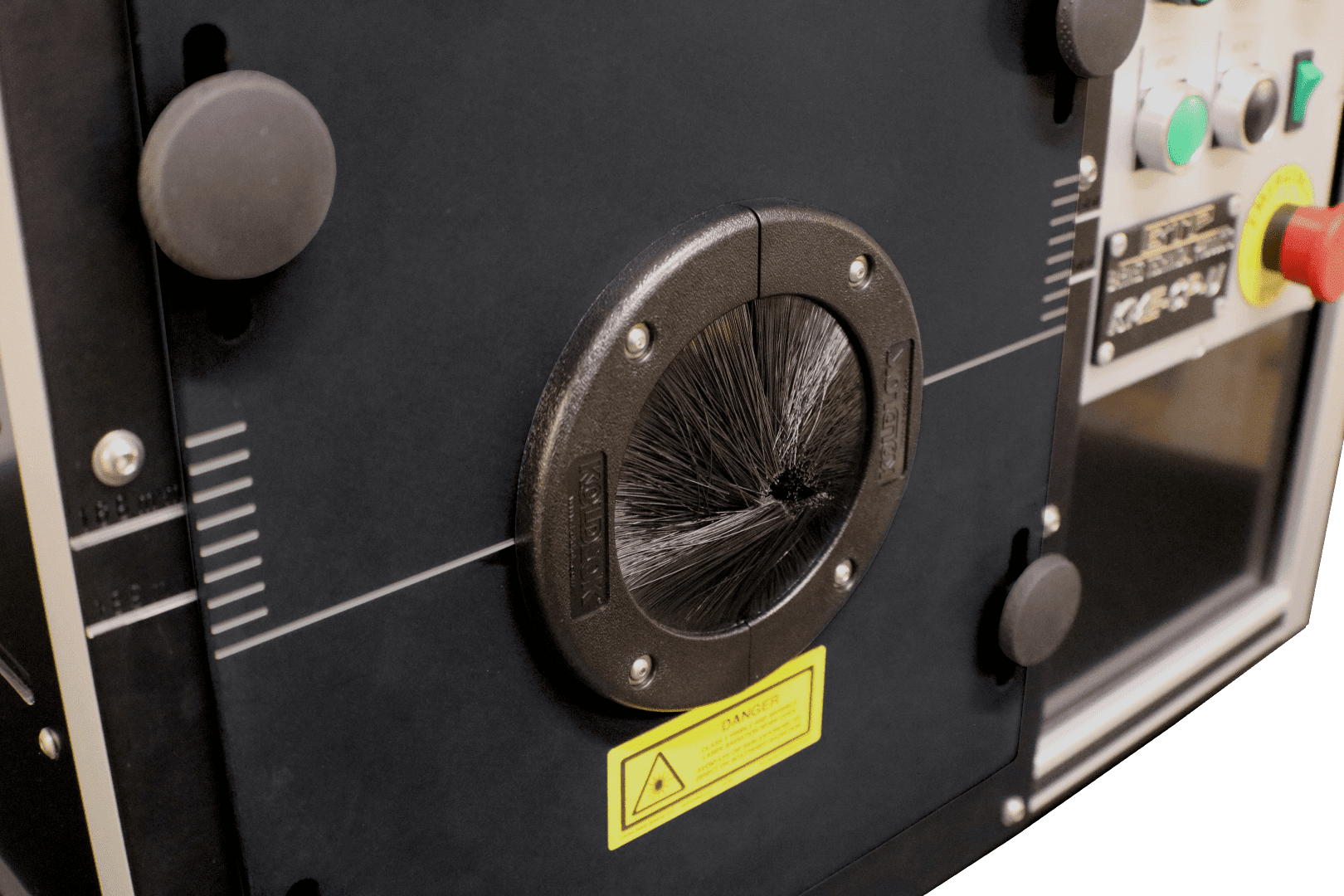

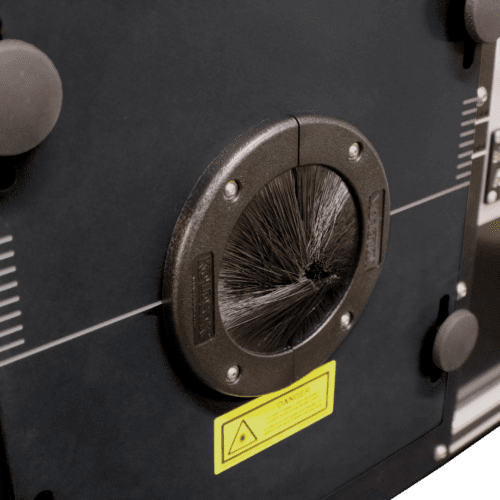

- Height-Adjustable Brush Seals
- Interchangeable Brush Seal Plates (4 options)

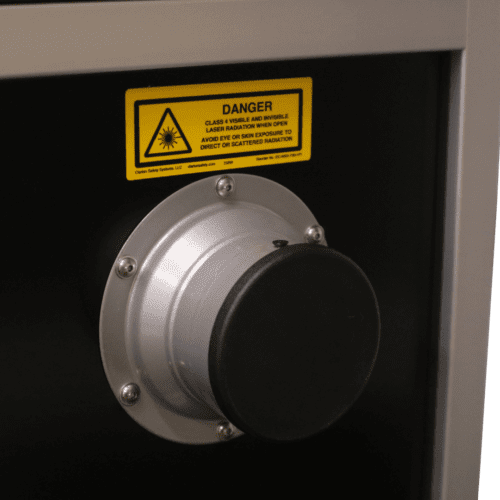

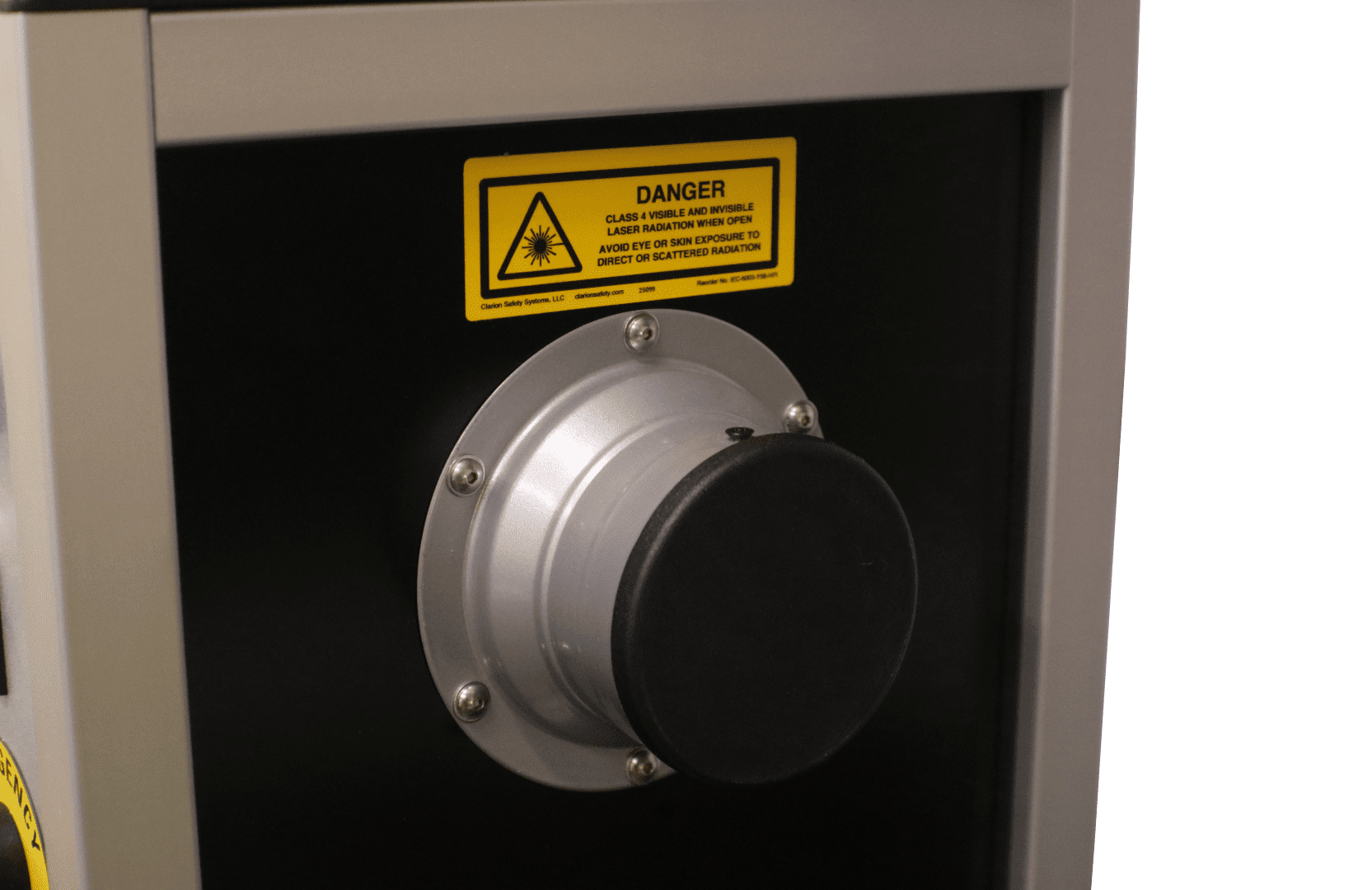

- Fume Extractor Port with Cover
- Laser-Safe Viewing Window
- LED Interior Light

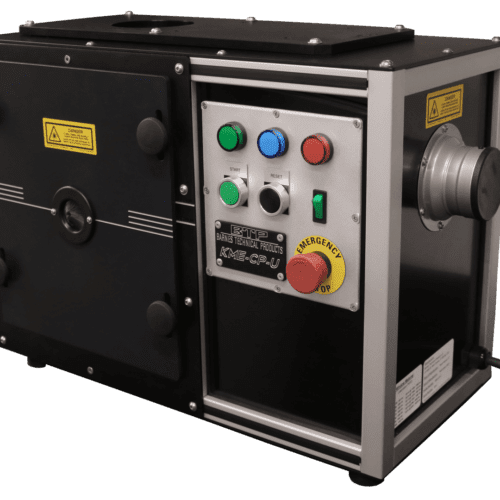

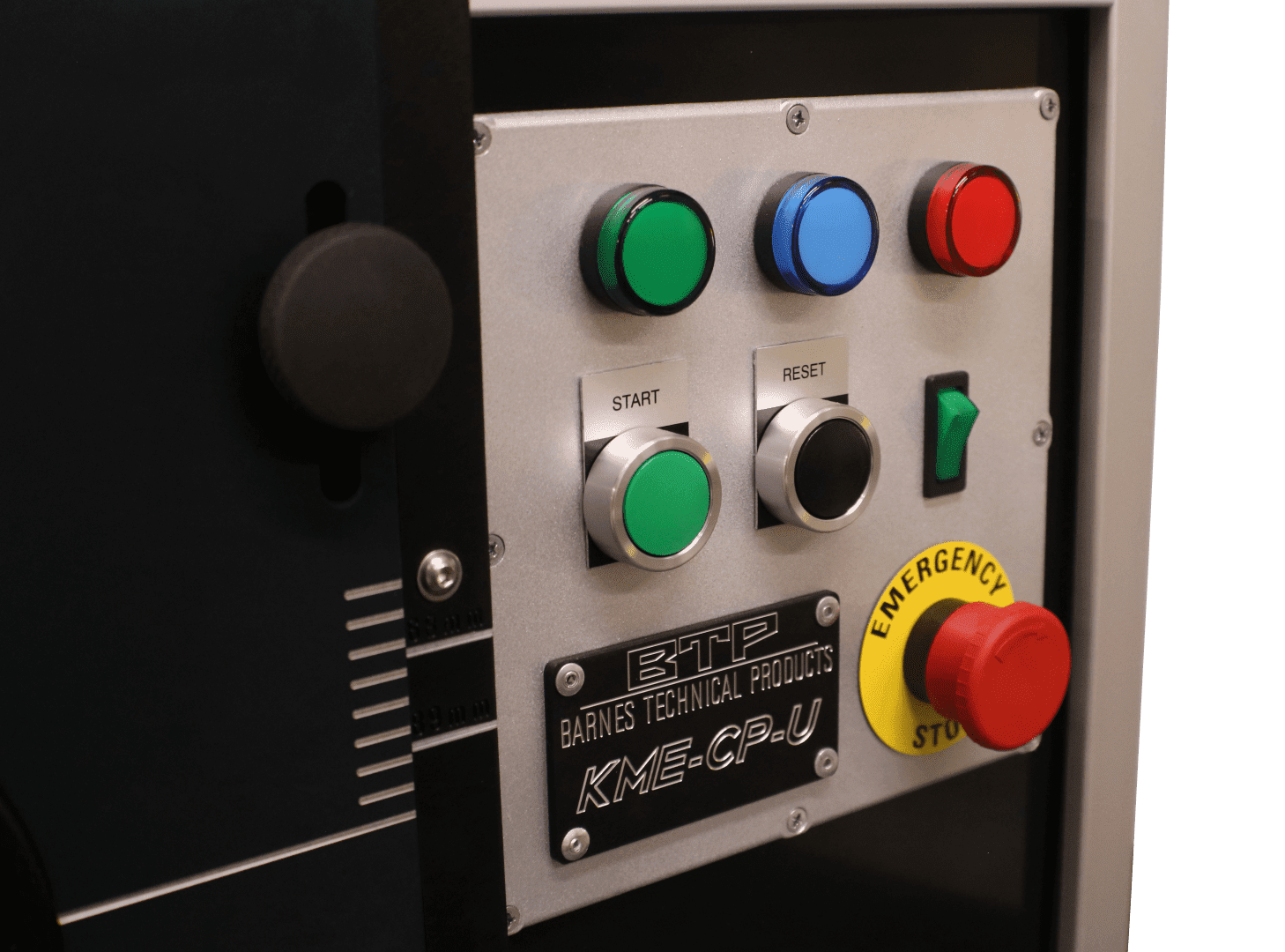

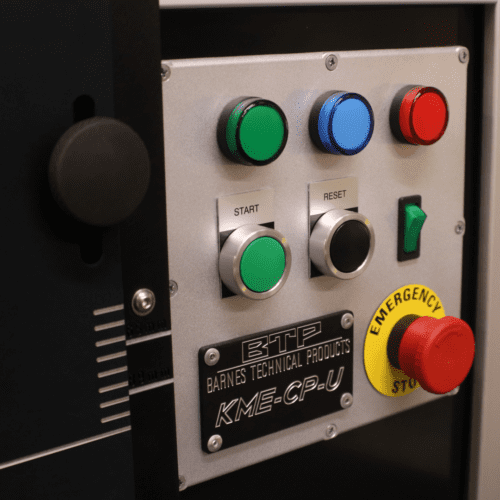

- Control Panel with Indicator Lights, Start/Stop Buttons, E-Stop and Light Switch
System Design

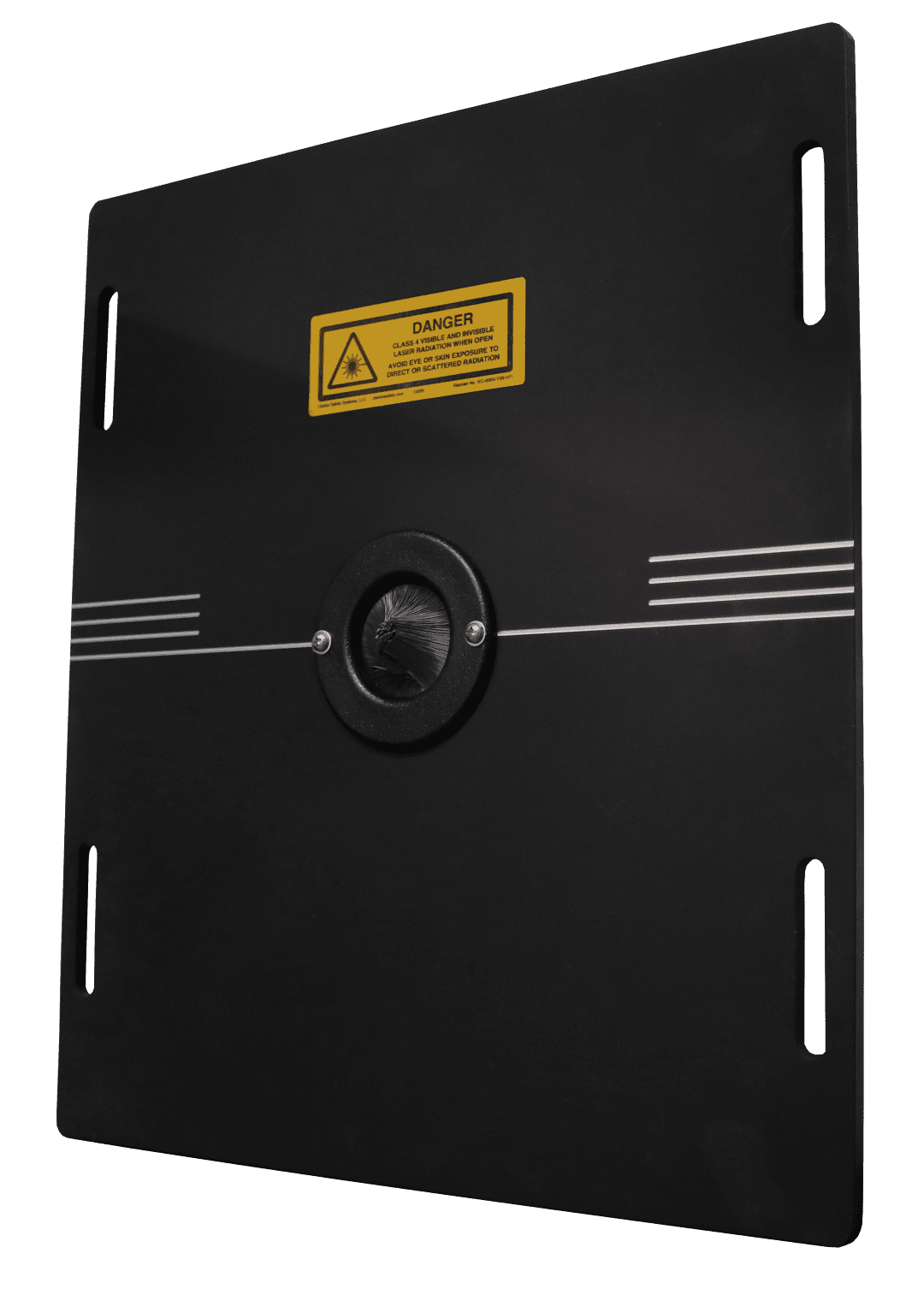

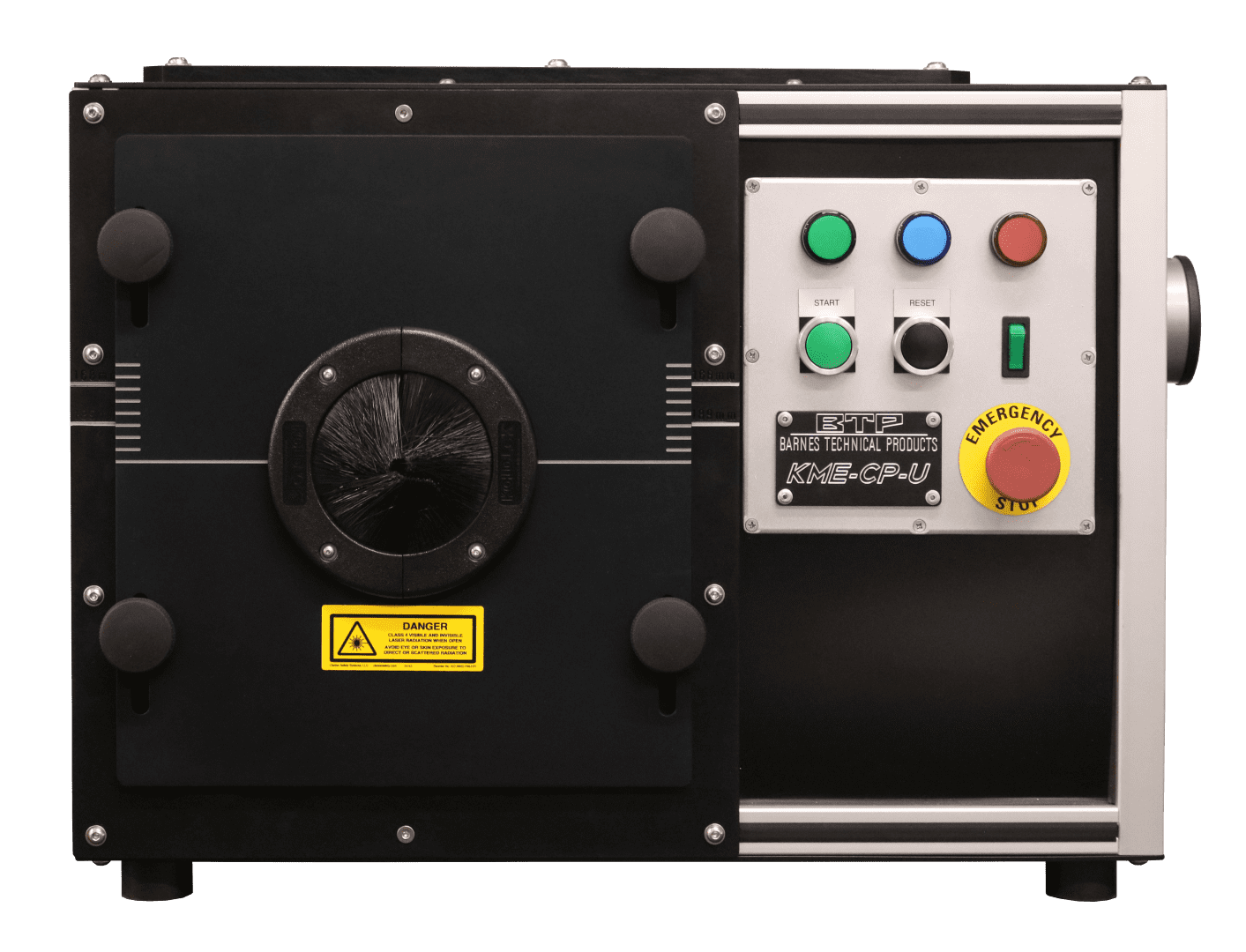

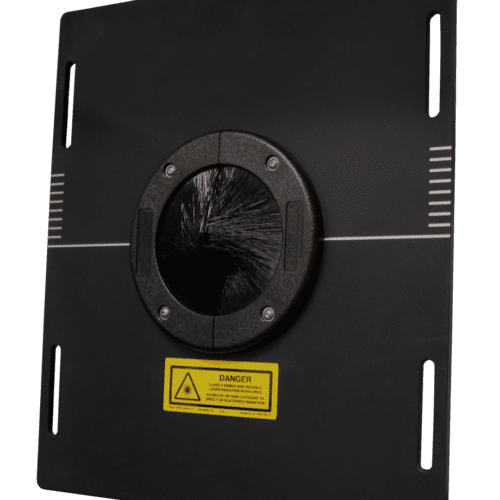

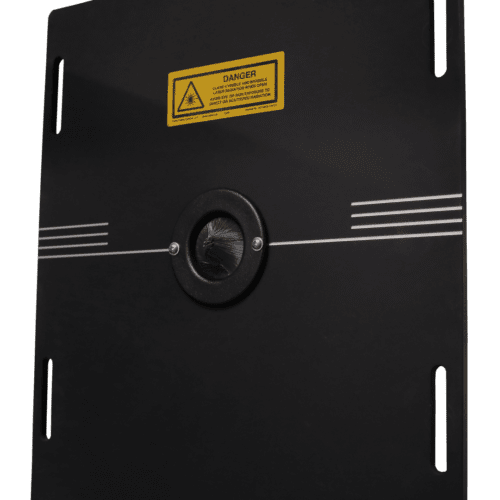

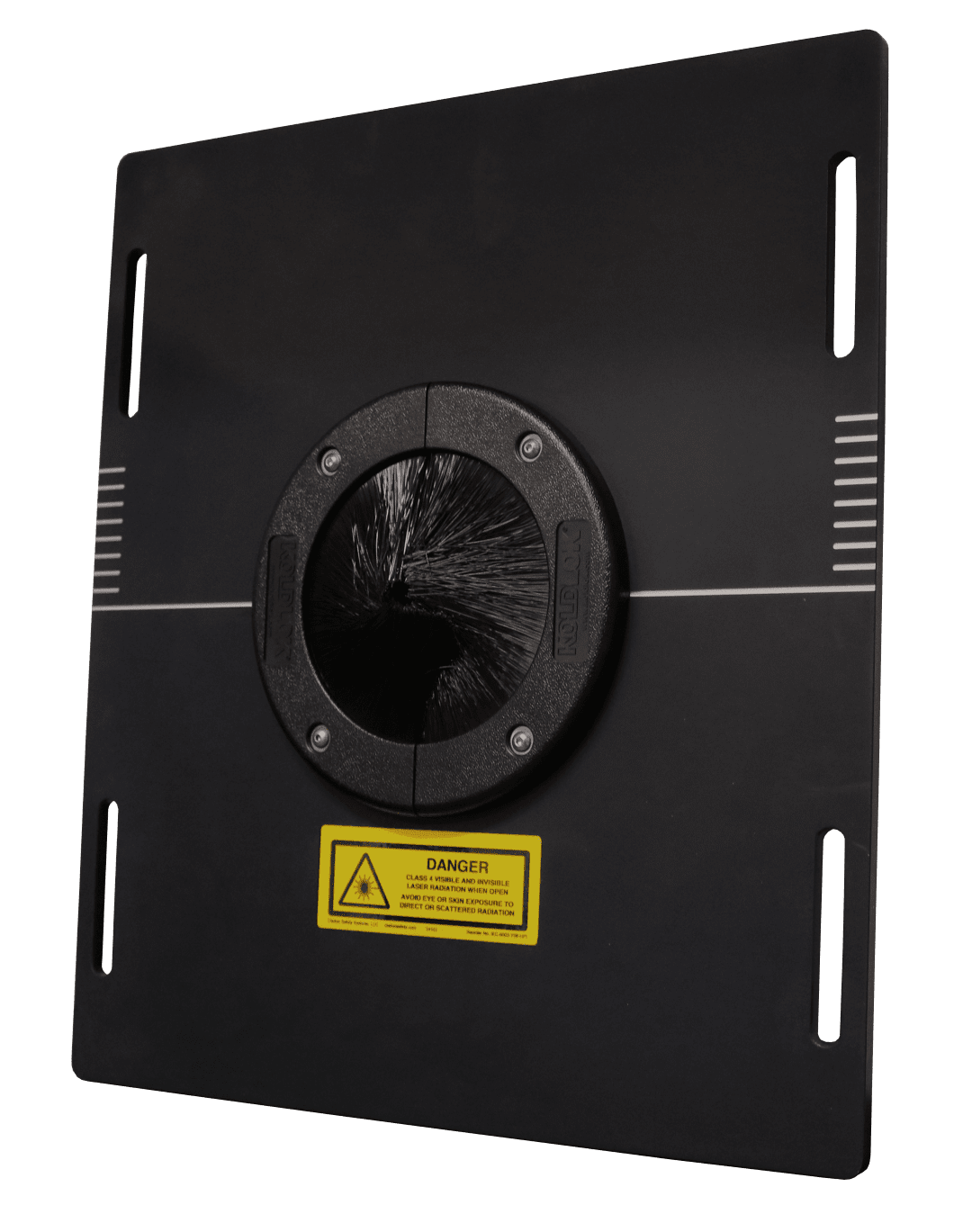

Interchangeable Pass-Through Plates can be quickly swapped on and off the enclosure using four hand knobs, with each plate featuring a different size brush seal to accommodate various part sizes.
Each enclosure includes one set of Pass-Through Plates (your choice).
Additional Pass-Through Plate sets can be ordered to expand the range of part sizes that can be marked using the same enclosure.

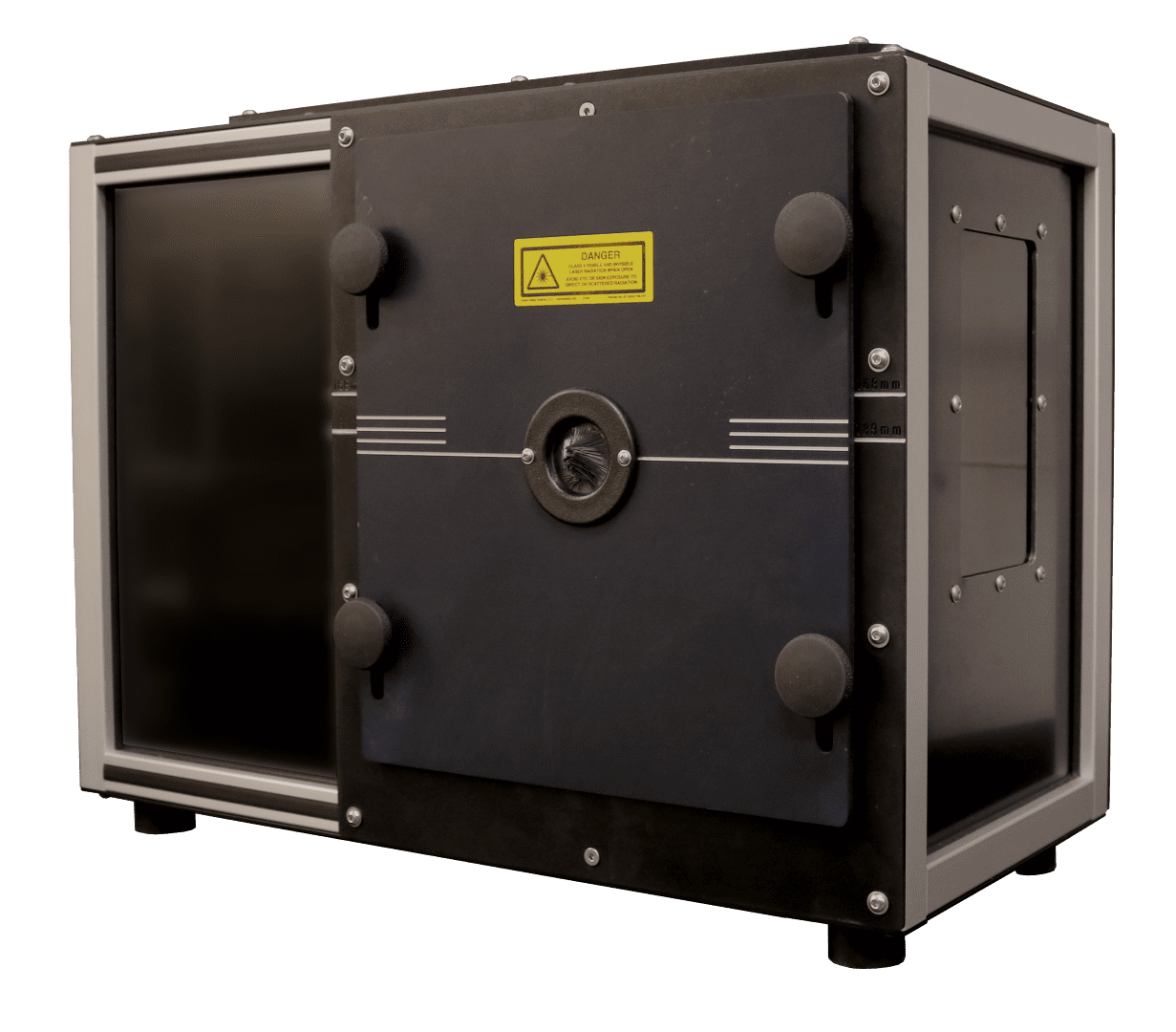

Base Enclosure
Pass-Through Plates
Models
Enclosure Models
$4,990
Includes One Set of Pass-Through Plates
Enclosure Dimensions
24-3/4″ L x 13″ W x 17″ H
Enclosure Model
Keyence Laser
Marking Area
KME-CP-X
MD-X
Standard
KME-CP-U
MD-U
Standard
KME-CP-F
MD-F
Standard
* The KME-CP Enclosure is Compatible ONLY with Standard Marking Area Models
- MD-X
- MD-X1000 / MD-X1000C
- MD-X1500 / MD-X1500C
- MD-X2000 / MD-X2000A
- MD-X2500 / MD-X2500A
- MD-F
- MD-F3100 / MD-F3100C
- MD-F5100 / MD-F5100C
- MD-F3200 / MD-F3200C
- MD-F5200 / MD-F5200C
- MD-U
- MD-U100C
Pass-Through Plates
Each enclosure includes one set of Pass-Through Plates (your choice).
Additional sets of Pass-Through Plate sets are available for purchase to accommodate a wider range of part sizes.
$675 ea.

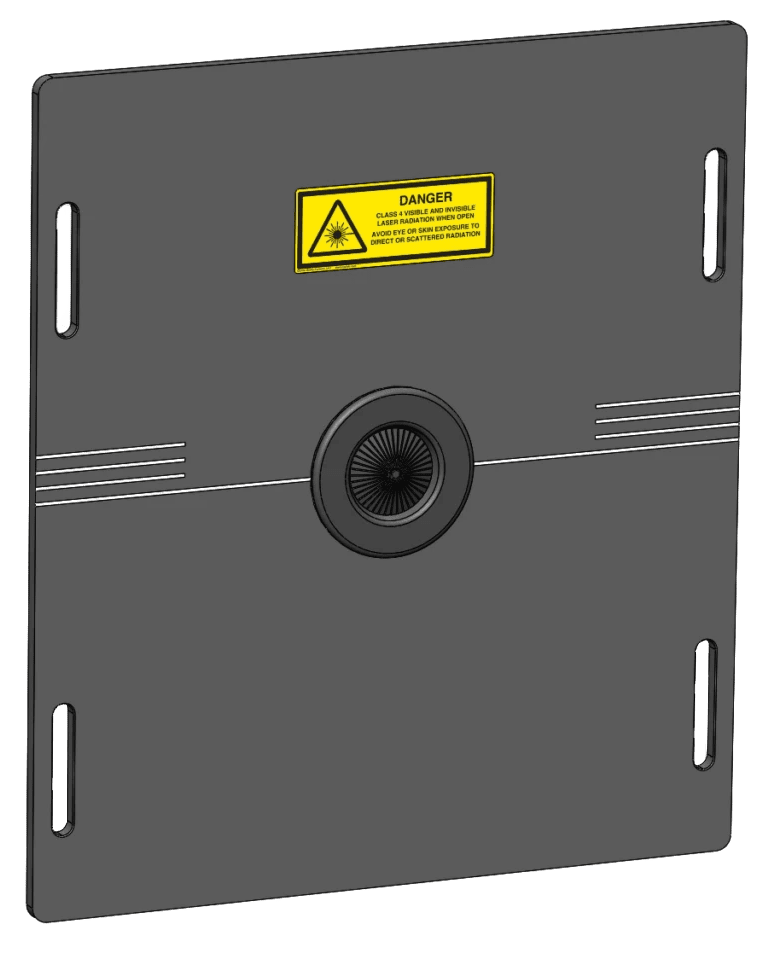

KME-CP-P1
Small Circular
Pass-Through Plate
For cables, tubes or cylindrical parts up to 0.5″ in diameter.

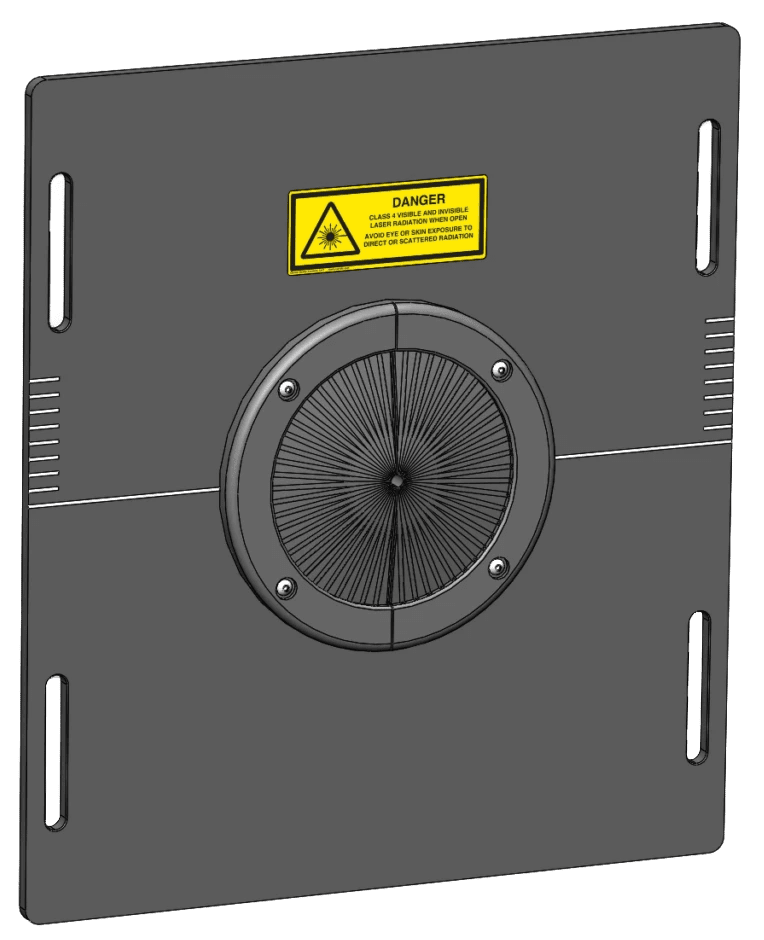

KME-CP-P2
Medium Circular
Pass-Through Plate
For cables, tubes or cylindrical parts from 0.5″ to 1.5″ in diameter.

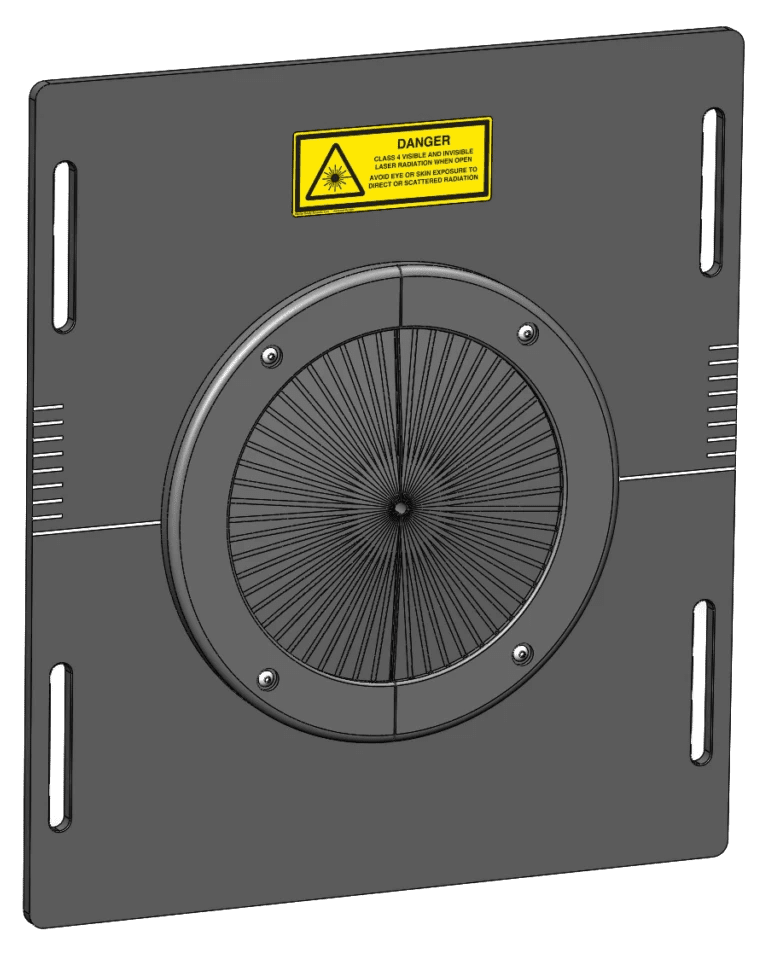

KME-CP-P3
Large Circular
Pass-Through Plate
For cables, tubes or cylindrical parts from 1.5″ to 4″ in diameter.

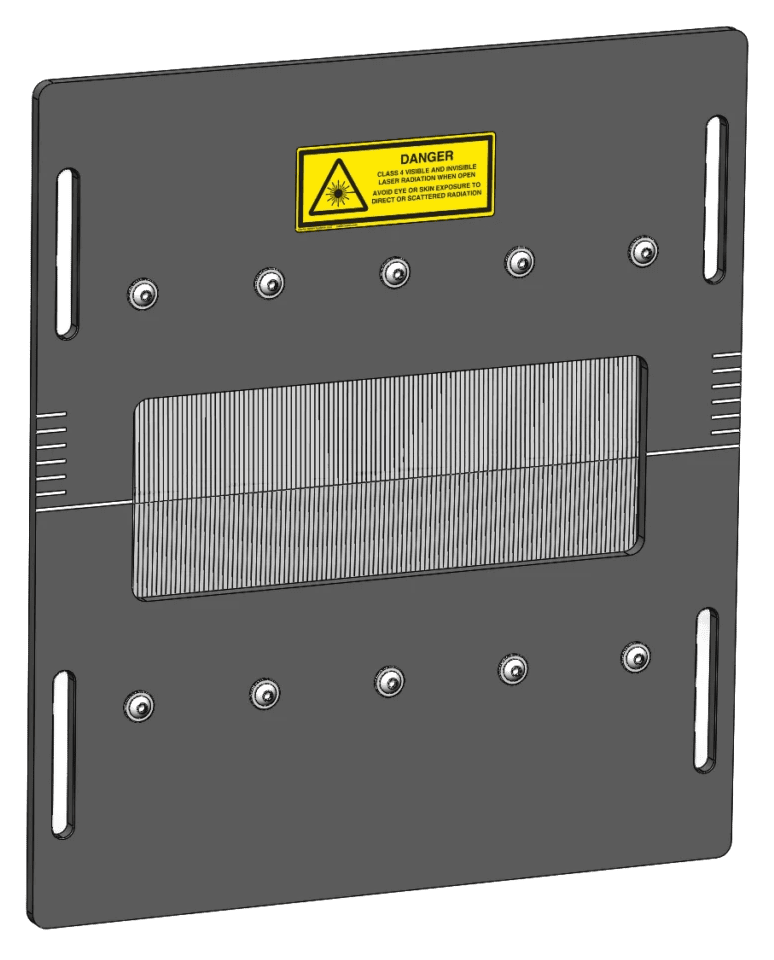

KME-CP-P4
Rectangular
Pass-Through Plate
For non-cylindrical parts up to 8.5″ wide x 3″ tall.
